Bartolini 3AV Soundhole Pickup System for Acoustic Guitar

Bartolini 3AV Soundhole Pickup System for Acoustic Guitar

Make your acoustic guitar sound great through an amp with the legendary 3AV and its new, easier-to-install bracket.

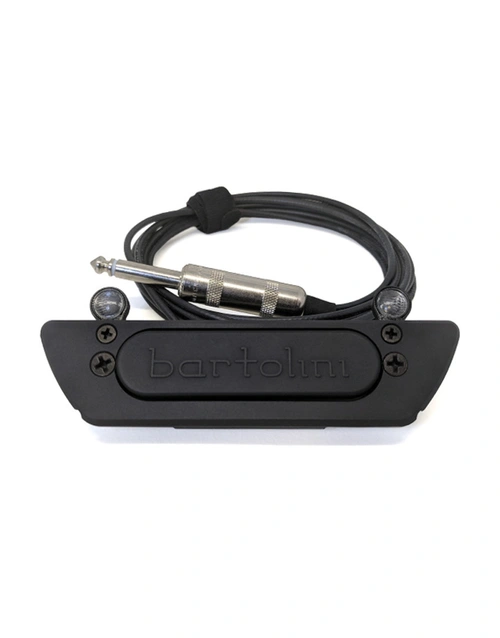

Bartolini's legendary 3AV Hum-Killer Acoustic Guitar Soundhole pickup provides an incredibly natural sounding acoustic voice, bright and clear with B-string compensation and a 10-foot cable. It now features a new, easy to install, clean look mounting bracket. It is designed to be installed on the bridge side of a 3-1/2" to 4-1/2" soundhole for the best tonal response.

3AV Technical Details:

• Coil Structure: Stacked Coil Hum-Killing Cable
• Type: 10 Foot Shielded Coaxial Cable with 1/4" Plug
• Magnetic Circuit: 2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture and B-string mass compensation with field isolation of hum-killing coil.

3AV Coil Specifications:

• DC Resistance: ~2.8K
• Resonant Frequency: ~9.2KHz
• Sensing Width: 2.17" [55mm] Max

3AV Shape Details:

• 2.75" [69.9mm] Long,
• 0.69" [17.5mm] Wide,
• 0.78" [19.8mm] Thick + 0.11" [2.8mm] Cable
• Fits 3-1/2" - 4-1/2" Soundholes
