Bartolini HR-3.3AP/918 Pre-Wired Harness with 2-Band EQ and 3-Pots

Bartolini HR-3.3AP/918 Pre-Wired Harness with 2-Band EQ and 3-Pots

Wired with Bartolini's NTBT 2-band pro-level pre-amp and premium audio-quality pots and switches, you''ll have smooth control and be ready for years of rugged use. Bartolini include battery clips and an output jack for quick installation. This configuration has a 2-Band EQ and 3 Pots: (Volume) (Blend) (Treble/Bass Stack) - Active/Passive.

The NTBT is a 2-band tone control preamp with fully independent Bass and Treble controls. The voice is clear, transparent, and strong with wide boost and cut range for aggressive control. The NTBT features an adjustable gain which allows you to boost the input signal up to 12dB while maintaining flat frequency response. A professionally pre-wired and fully pre-tested harness saves the time and aggravation of wiring your preamp and pots into your instrument.

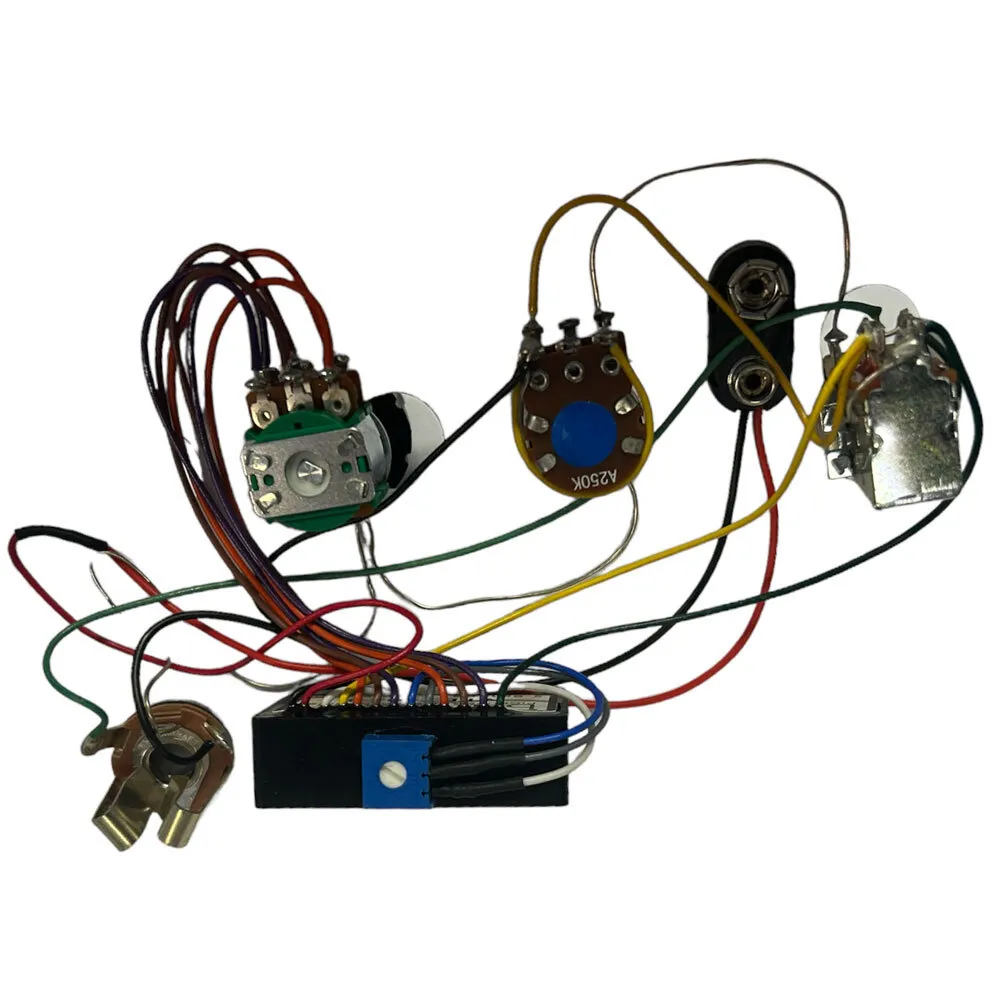

Wired with Bartolini's pro-level preamp and premium audio-quality pots and switches, you'll have smooth control and be ready for years of rugged use. Bartolini include battery clips and an output jack for quick installation. All the pots are grounded with a wire that can be connected to the cavity shield or simply cut away if not needed in your installation. Everything is pre-soldered with pro-quality pure copper wire that is double tin plated and protected with semi-rigid insulation so it won't flop around in the cavity or degrade over time.

Bartolini use only professional lead-free solder with non-corrosive flux. Knobs are a personal choice, so they are not included with the harness - except where there is a stacked (concentric) pot, Bartolini include a ring knob and center knob since they are not as common.
