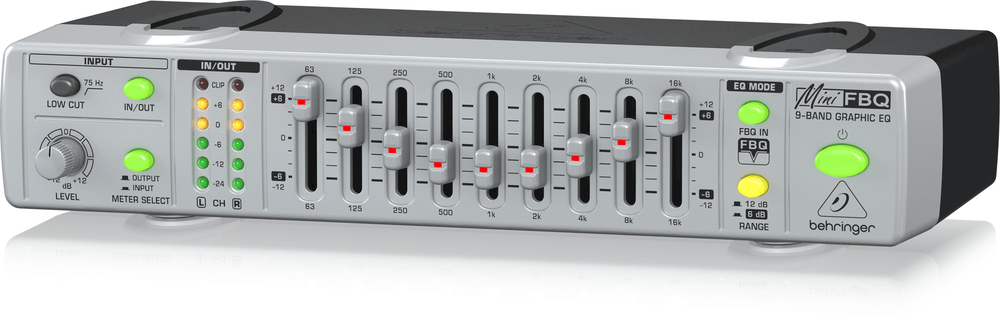

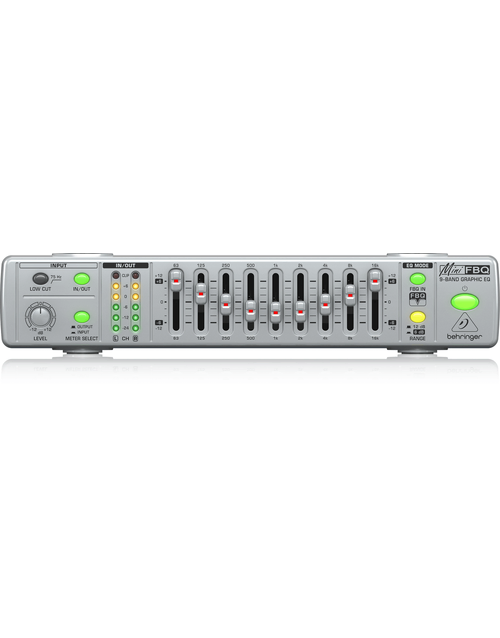

Behringer MINIFBQ FBQ800 9-Band Graphic EQ with FBQ

Behringer MINIFBQ FBQ800 9-Band Graphic EQ with FBQ

If we all lived in a perfect world, there would be no need for audio equalization. Sound systems would be perfect and would reproduce perfect signals in all their glorious perfection. Also, everyone in that perfect world would like the same amount of bass, midrange and high frequency, and there would be no such thing as feedback. But the world isn’t perfect, is it? Even the best sound system can benefit from the use of a good EQ—like the FBQ800.

Imagine the frequency range of the sound you hear as a highway, a very wide one with nine lanes. Each of these “lanes” represents a single octave of the sonic spectrum. The first four lanes, labelled 63 - 500 (Hz) contain the really low frequency sound content, mainly bass, bass vocals, and the kick and tom drums. The three lanes labelled 1 k, 2 k and 4 k (Hz), make up the fundamental zone of most musical instruments and the male and female vocals. 8 k and 16 k cover the frequency range of cymbals, snare drums and higher pitched percussion instruments. The FBQ800 allows you to control the flow of audio traffic in each of these nine lanes. When properly applied, EQ makes it possible to hear all of these frequency ranges equally, thus the term equalization.

When a specific frequency, or range of frequencies, reaches too high a level, feedback occurs—that all-too-familiar squeal or howl you get when the mic is too close to the speaker. Basically, feedback happens when there is so much of a particular frequency that it is picked up by the mic and run through the system again. That’s why feedback typically gets louder and louder the longer it’s allowed to occur. Needless to say, this kind of feedback is very undesirable. This is where the FBQ800’s Feedback Detection System really works its magic. In this ingenious circuitry, LEDs on the individual faders light up when that frequency band is approaching the danger zone. All you need do is lower the illuminated slider until the LED blinks out—voilà, feedback problem solved! What once required a highly trained ear is now an activity that even a child can master.

That really is the best way to describe the FBQ800. With its nine frequency bands, you easily fine-tune your sound and instantly eliminate feedback. And each fader can be used to boost or cut the frequency range it controls by as much as 12 dB (and that’s a lot!). Special attention is paid to the low frequency zone. In addition to low frequency faders, the FBQ800 features a Low Cut filter for removing unwanted low frequencies such as floor rumble, room resonance, electrical hum, etc. This is especially handy if your system is being used for speech rather than music.
