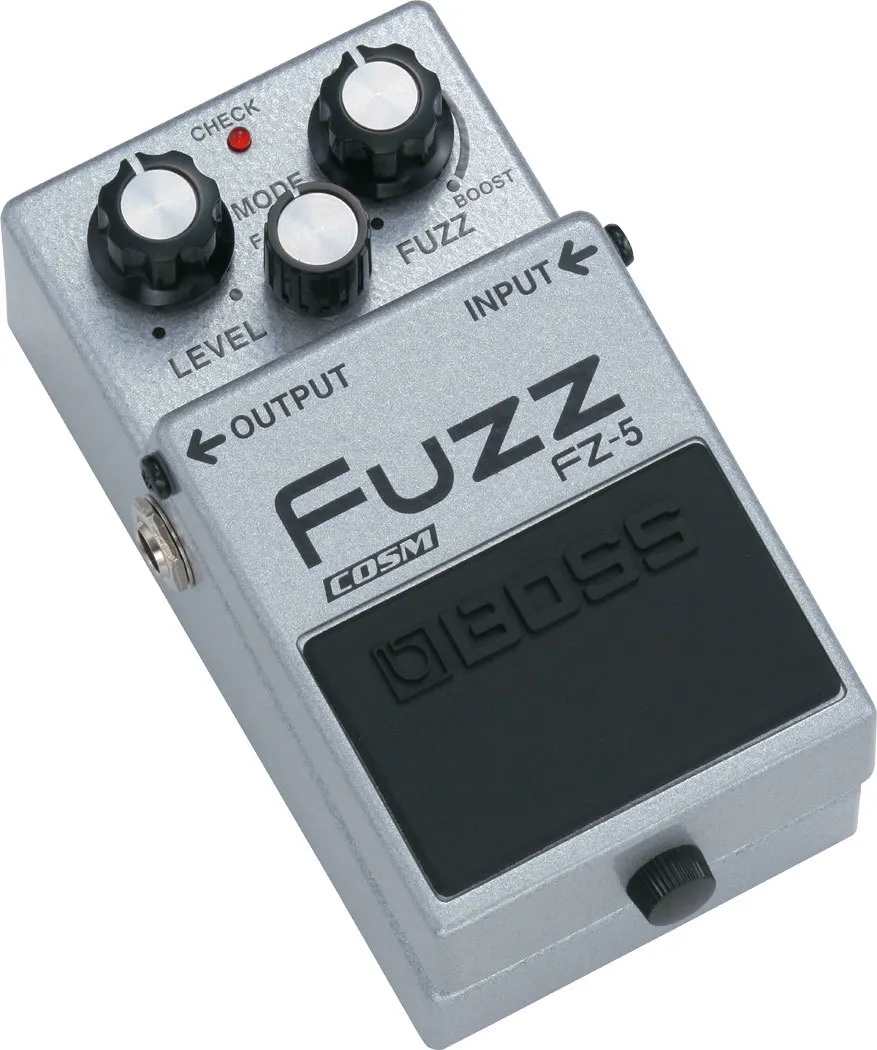

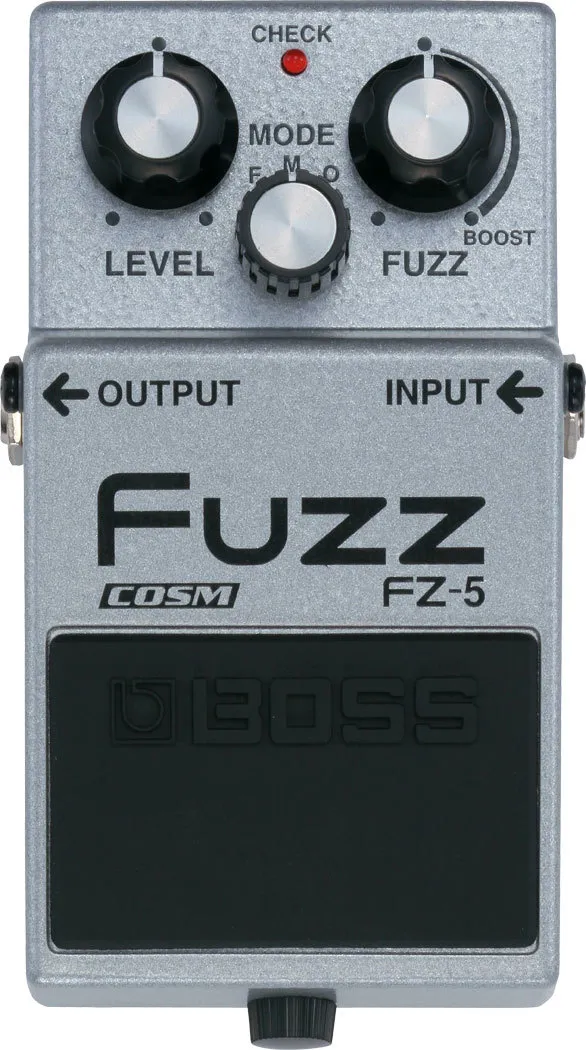

Boss FZ5 Fuzz Pedal
A DISTORTED BLAST FROM THE PAST
The FZ-5 is a modern pedal built for the modern guitarist, but the sounds you can get from the FZ-5 are pure retro. Looking back at the glorious rock sounds of the ’60s and ’70s, the FZ-5 recreates its vintage fuzz through BOSS state-of-the-art COSM technology. Recall the fuzz-filled flavors of classic pedals, such as the Maestro FZ-1A, Fuzz Face and Octavia pedals, and kick ’em into overdrive with the FZ-5’s Boost knob. BOSS’ proprietary COSM technology allows guitar players to recreate classic fuzz BOOST control for more aggressive tone. The FZ-5 is the perfect weapon for players wanting to beef up their rigs with classic retro fuzz artillery.
- Vintage sounds inspired by famous fuzz pedals of the ’60s and ’70s
- Uses advanced COSM technology to recreate classic fuzz
- BOOST control for more aggressive tone
- Road-tough BOSS metal construction
(FZ5)
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- FUZZ knob
MODE knob
LEVEL knob
Pedal switch - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately) - Current Draw
- 36 mA
- Expected battery life under continuous use
- Alkaline: Approx. 10 hours
Carbon: Approx. 3 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Owner's manual
Mode sticker
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
- SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 440 g
1 lb
| SKU | FZ5 |
| Barcode # | 4957054403560 |
| Brand | BOSS |
| Shipping weight | 0.5500kg |
| Shipping width | 0.100m |
| Shipping height | 0.065m |
| Shipping length | 0.150m |
| Shipping cubic | 0.000975000m3 |
