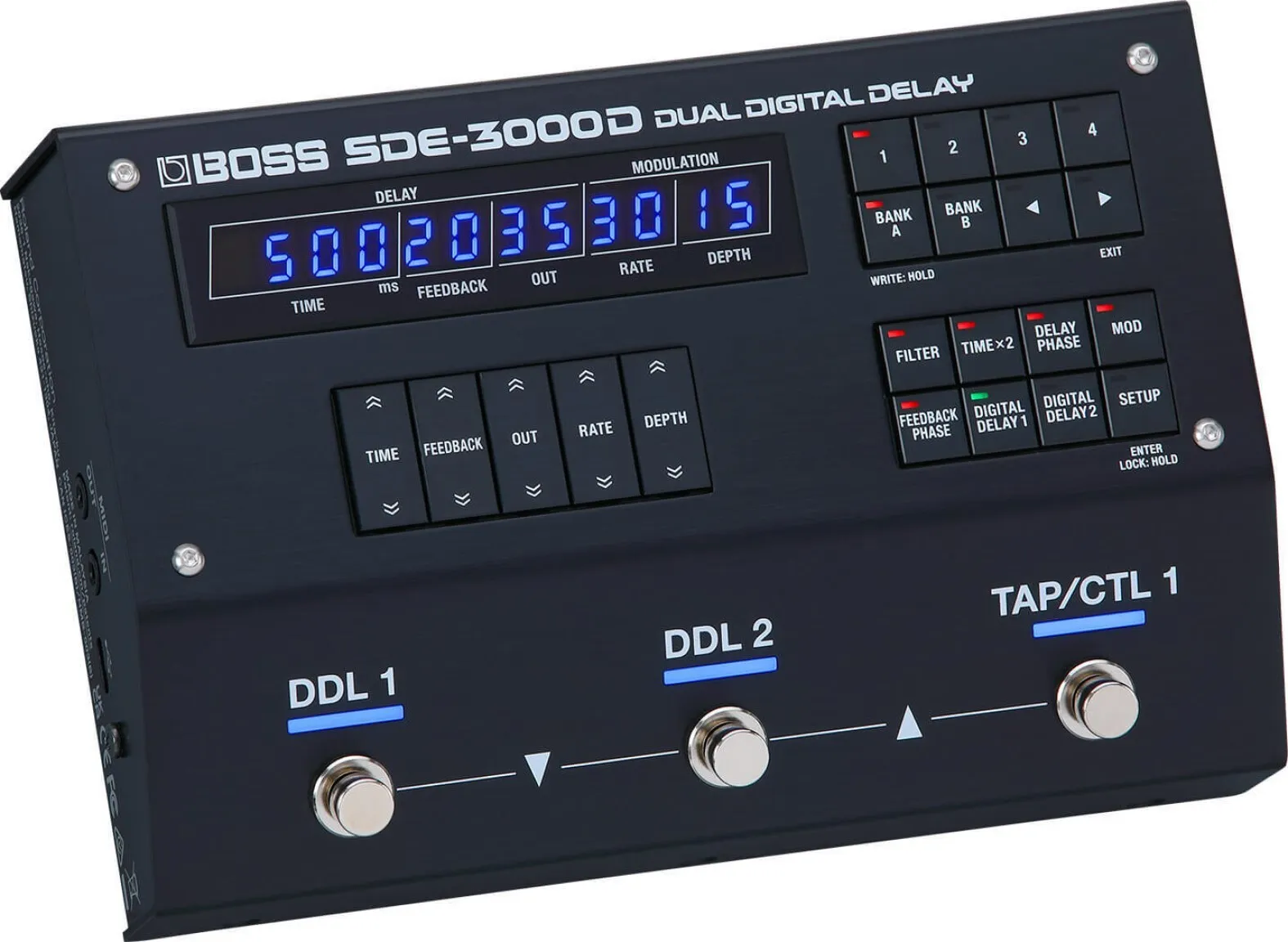

Boss SDE-3000D Dual Digital Delay Pedal
Complement your order with the below
Vintage Tone Reinvented for Modern Musicians
Rediscover the magic of vintage digital delay with the Boss SDE-3000D Dual Digital Delay Pedal. Paying homage to the revered Roland SDE-3000 rackmount legend of the 1980s, this floor-based pedal brings you not just one, but two authentic reproductions of the iconic delay machine. Immerse yourself in the captivating warmth, rich modulation, and extended delay times that made the original a staple among touring guitarists, session musos, and engineers worldwide.
The SDE-3000D opens up a world of creative possibilities for mono and stereo setups, with fully independent delays and flexible internal routing. Immerse your sound in the lush tones of the past while enjoying the modern versatility offered by expanded I/O and enhanced modulation and tone-shaping capabilities. With 100 memory slots, you can effortlessly recall your favourite setups, and deep MIDI support allows seamless integration into any stage or studio environment.
Don't be surprised if the SDE-3000D captivates you with its retro digital magic. Its ultra-wide dynamic range, adjustable delay phase, and remarkable modulation combine to elevate every note you play to new heights. The distinctive voice of the SDE-3000 became a legendary part of music in the 1980s and 1990s, and now you have the power to access those authentic delay sounds used to craft iconic tracks throughout history.
Delve into the faithful sound reproduction of the SDE-3000D, which masterfully captures the original's warm, inviting tones and musicality. Meticulous analysis of the complex internal digital processing and nonlinear behaviours of the analogue circuitry ensures a complete revival of the classic character for the modern era. Experience the authentic details and modern enhancements of the SDE-3000D. Selectable delay ranges, unique tonal colouring options, and a broad range of control over delay phase settings give you the tools to sculpt your sound with precision and creativity. The pedal's dual delays can be run in parallel or series, allowing for stunning stereo effects and intricate rhythmic patterns.
At Riffs & Licks Music, we think the Boss SDE-3000D Dual Digital Delay Pedal is a true gem for any musician seeking to infuse their music with vintage charm, while maintaining the convenience and easier utility of modern technology.
Features
| Faithful floor-based reproduction of the legendary Roland SDE-3000 rackmount digital delay from the 1980s |
| Classic warm digital delay sound with extended features for modern rigs |

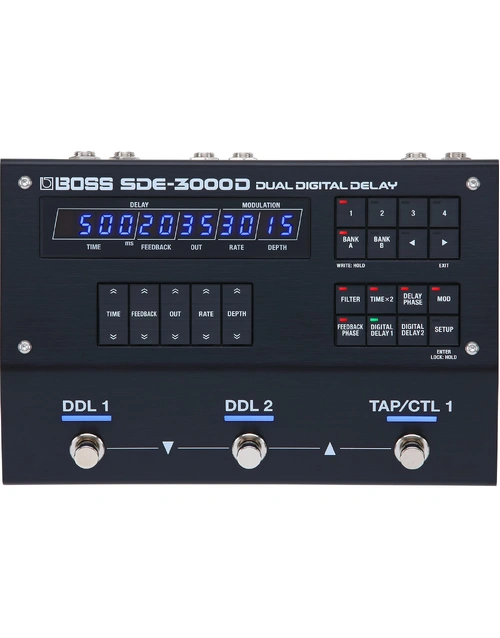

| Distinctive retro display and panel controls based on the original SDE-3000 |
| Includes two full-featured delays, each with independent parameters, mono/stereo modulation, and panning |
| Widely adjustable delay time with two range settings: 0–1500 ms and 0–3000 ms |
| Characterful modulation inspired by the original circuit design |
| Phase switches for the primary delay and delay feedback loop |
| Adjustable low-cut and high-cut filters for shaping delay feedback sounds |
| Two inputs and two outputs for dual mono, wet/dry, or stereo setups |
| Selectable series or parallel operation for the two delays |
| Save and recall sounds with 100 memories |
| Assignable onboard footswitch control for tap tempo, hold, and more |
| Jacks for extended operation with up to four footswitches, two expression pedals, or the GA-FC/GA-FC EX foot controller |

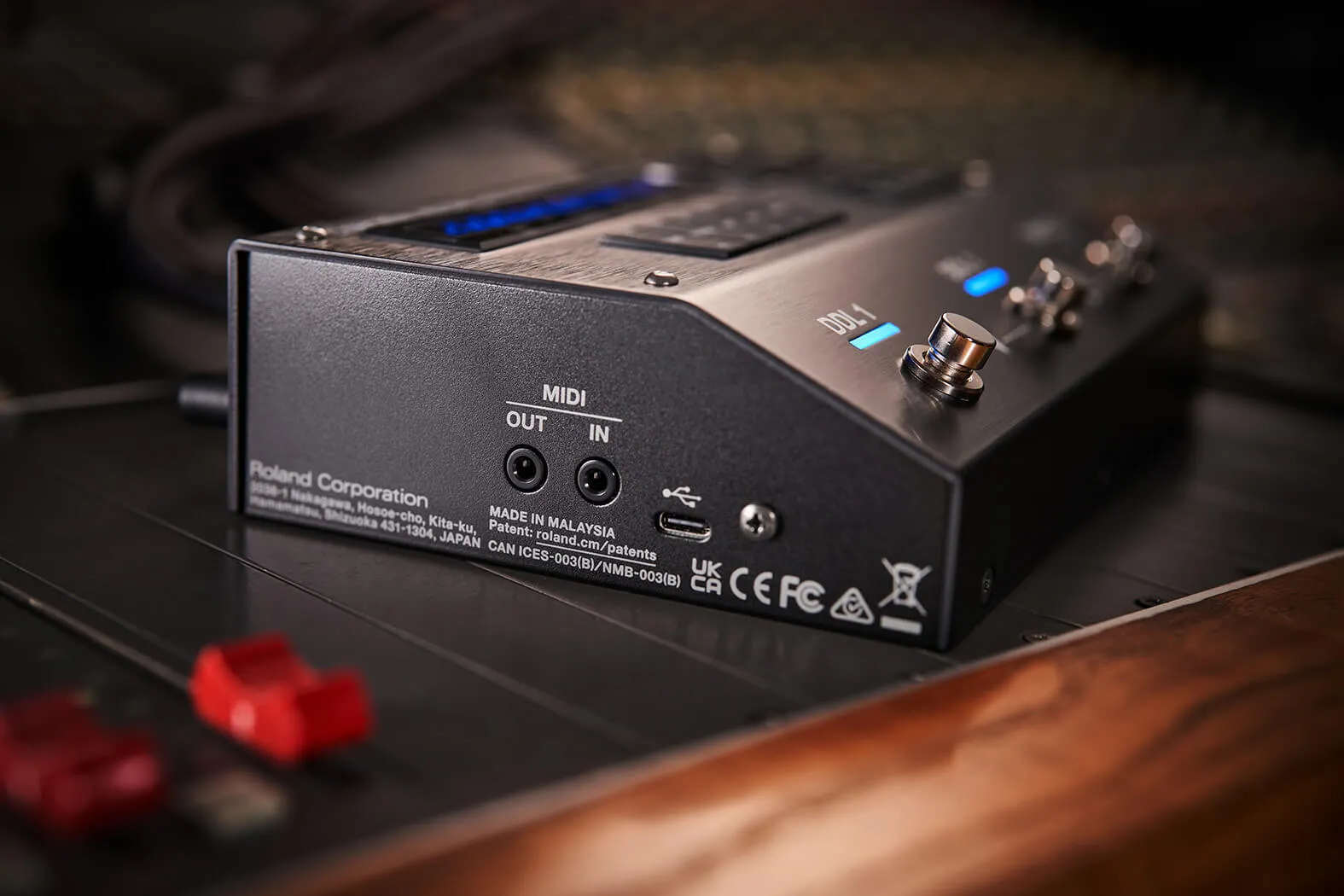

| MIDI I/O on space-saving mini TRS jacks |
Specifications
| Sampling Frequency | 48 kHz |
| AD Conversion | 24 bits + AF method AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters. |
| DA Conversion | 32 bits |
| Processing | 32-bit floating point |
| Effects | SDE-3000 STEREO DELAY x2 FOOT VOLUME |
| Memories | 100 |
| Nominal Input Level | INPUT (L/MONO, R): -10 dBu |
| Maximum Input Level | INPUT (L/MONO, R): +12 dBu |
| Input Impedance | INPUT (L/MONO, R): 1 M ohm |
| Nominal Output Level | OUTPUT (L/MONO, R): -10 dBu |
| Output Impedance | OUTPUT (L/MONO, R): 1 k ohm |
| Recommended Load Impedance | OUTPUT (L/MONO, R): 10 k ohms or greater |
| Controls | TIME button, FEEDBACK button, OUT button, RATE button, DEPTH button, 1--4 buttons, BANK A button, BANK B button, LEFT button, RIGHT button, FILTER button, TIME×2 button, DELAY PHASE button, MOD button, FEEDBACK PHASE button, DIGITAL DELAY1 button, DIGITAL DELAY2 button, SETUP button, DDL1 switch, DDL2 switch, TAP/CTL1 switch |
| Display | 7 segments, 12 digits LED |

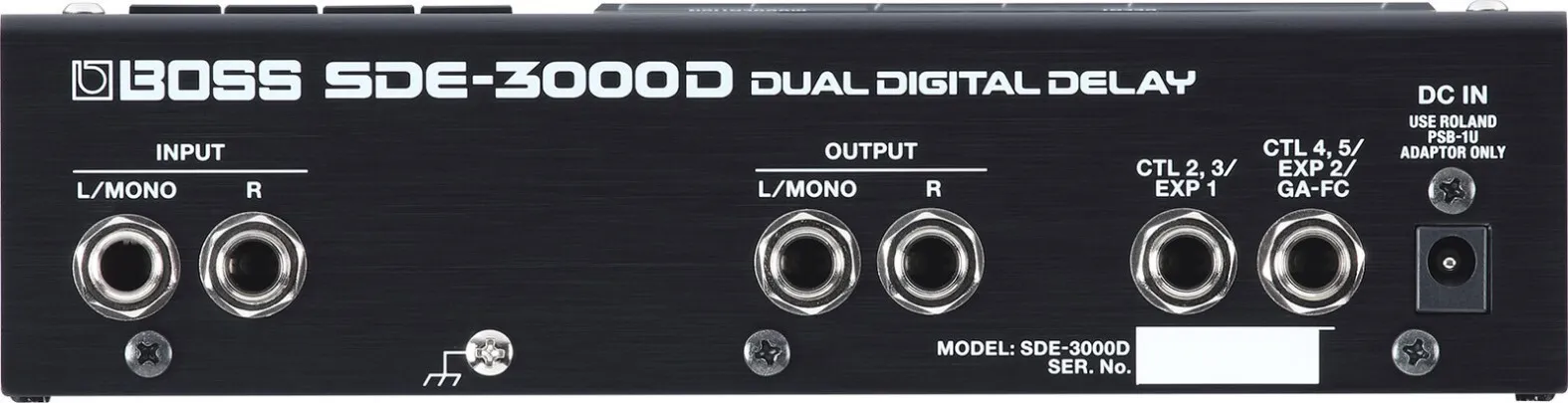

| Connectors | INPUT (L/MONO, R) jack, OUTPUT (L/MONO, R) jacks: 1/4-inch phone type CTL2,3/EXP1 jack, CTL4,5/EXP2/GA-FC jack: 1/4-inch TRS phone type MIDI (IN, OUT) jacks: Stereo miniature phone type USB port: USB Type-C(R) DC IN jack |
| Power Supply | AC adaptor |
| Current Draw | 450 mA |
| Accessories (Included) | AC adaptor (PSB-1U + AC Cord Set) STARTUP GUIDE Leaflet "USING THE UNIT SAFELY" Rubber foot x 4 |
| Optional Extras (Sold Separately) | Footswitch: FS-5U, FS-5L Dual footswitch: FS-6, FS-7 Expression Pedal: Roland EV-5, EV-30, FV-500L, FV-500H Foot Controller :GA-FC, GA-FC EX MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 |
| Dimensions (W x D x H; mm) | 199 x 135 x 54 |
| Weight | 1.1kg |
(SDE3000D)
- SPECIFICATIONS
- Sampling Frequency
- 96 kHz
- AD/DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Delay Modes
- 12 modes
STANDARD
ANALOG
TAPE
VINTAGE DIGITAL
DUAL
PATTERN
REVERSE
TERA ECHO
SLOW ATTACK
FILTER
SHIMMER
SFX - Maximum delay time
- 10 sec.(depends on delay mode)
- Phrase loop
- 60 sec. (96 kHz/MONO, 48 kHz/STEREO)
120 sec. (48 kHz/MONO)
Delay can be applied. - Patches
- 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])
- Pedals
- Foot switch x 3 [A][B][TAP/CTL]
- Knobs
- MODE
TIME/VALUE
FEEDBACK
E.LEVEL
TONE
MOD DEPTH - Display
- Graphic LCD (128 x 64 dots, backlit LCD) x 1
- Nominal Input Level
- INPUT A/MONO, B: -10 dBu
- Maximum Input Level
- INPUT A/MONO, B: +8 dBu
- Input Impedance
- INPUT A/MONO, B: 1 M ohm
- Nominal Output Level
- OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level
- OUTPUT A/MONO, B: +8 dBu
- Output Impedance
- OUTPUT A/MONO, B: 2 k ohms
- Recommended Load Impedance
- OUTPUT A/MONO, B: 20 k ohms or greater
- Bypass
- Buffered bypass or True bypass (with relays)
- Connectors
- INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B USB-MIDI
MIDI (IN, OUT) connectors
DC IN jack - Power Supply
- Alkaline battery (AA, LR6) x 4
AC adaptor - Current Draw
- 200 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 7 hours
- Accessories
- Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4 - Options (sold separately)
- AC adaptor: PSA series
Footswitch: BOSS FS-5U, FS-5L
Dual Footswitch: BOSS FS-6, FS-7
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5 - SIZE AND WEIGHT
- Width
- 170 mm
6-3/4 inches - Depth
- 138 mm
5-7/16 inches - Height
- 62 mm
2-1/2 inches - Weight (including battery)
- 1.0 kg
2 lbs 4 oz.
| SKU | SDE3000D |
| Barcode # | 4957054520304 |
| Brand | BOSS |
| Shipping weight | 1.2300kg |
| Shipping width | 0.190m |
| Shipping height | 0.110m |
| Shipping length | 0.325m |
| Shipping cubic | 0.006792500m3 |
