TRUE VIBRATO EXPRESSION, REBORN WITH WAZA INNOVATION
Ahead of its time when it debuted in 1982, the VB-2 Vibrato has been rediscovered by modern players looking to create unique guitar textures with stompbox effects. Thanks to its expressive, one-of-a-kind sound, this rare pedal has gone on to become one of the most valuable BOSS effects in the vintage market. Now, the progressive spirit of the VB-2 has been reborn as the Waza Craft VB-2W. Using all-analog circuitry, the VB-2W authentically reproduces the true pitch-shifted vibrato of the original pedal, and also adds an innovative new vibrato mode and real-time control function for enhanced expression.
- Premium edition Waza Craft pedal delivers the ultimate BOSS tone experience
- Custom mode features a totally new vibrato sound with unique filter wave
- Standard mode provides a true reproduction of the vintage VB-2 Vibrato sound
- All-analog circuit with BBD (bucket brigade) vibrato line
- Control the effect depth in real time with an optional expression pedal
- Rise Time knob to control the initial onset of the vibrato effect
- Unlatch mode activates the effect only while pressing the pedal, ideal for adding vibrato to specific notes and chords
- Bypass mode takes the BBD out of the signal path to eliminate latency when the effect is off
(VB2W)
- SPECIFICATIONS
- Modes
- 3 modes
LATCH
UNLATCH
BYPASS - Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass

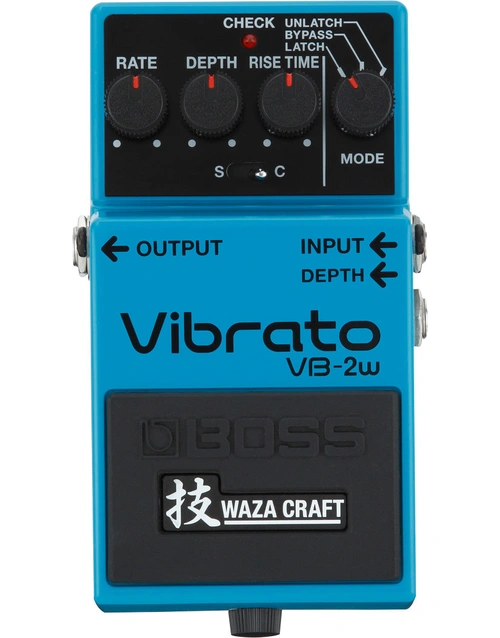

- Controls
- Pedal switch
Standard/Custom switch
RATE knob
DEPTH knob
RISE TIME knob
MODE knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack
OUTPUT jack
DEPTH jack
DC IN jack - Power Supply
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately) - Current Draw
- 35 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 22 hours
Carbon: Approx. 4 hours - Accessories
- Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
Expression Pedal: FV-500H, FV-500L, Roland EV-5 - SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 450 g
1 lb
SKU | VB2W |
Barcode # | 4957054510442 |
Brand | BOSS |
Shipping weight | 0.5700kg |
Shipping width | 0.100m |
Shipping height | 0.065m |
Shipping length | 0.150m |
Shipping cubic | 0.000975000m3 |
