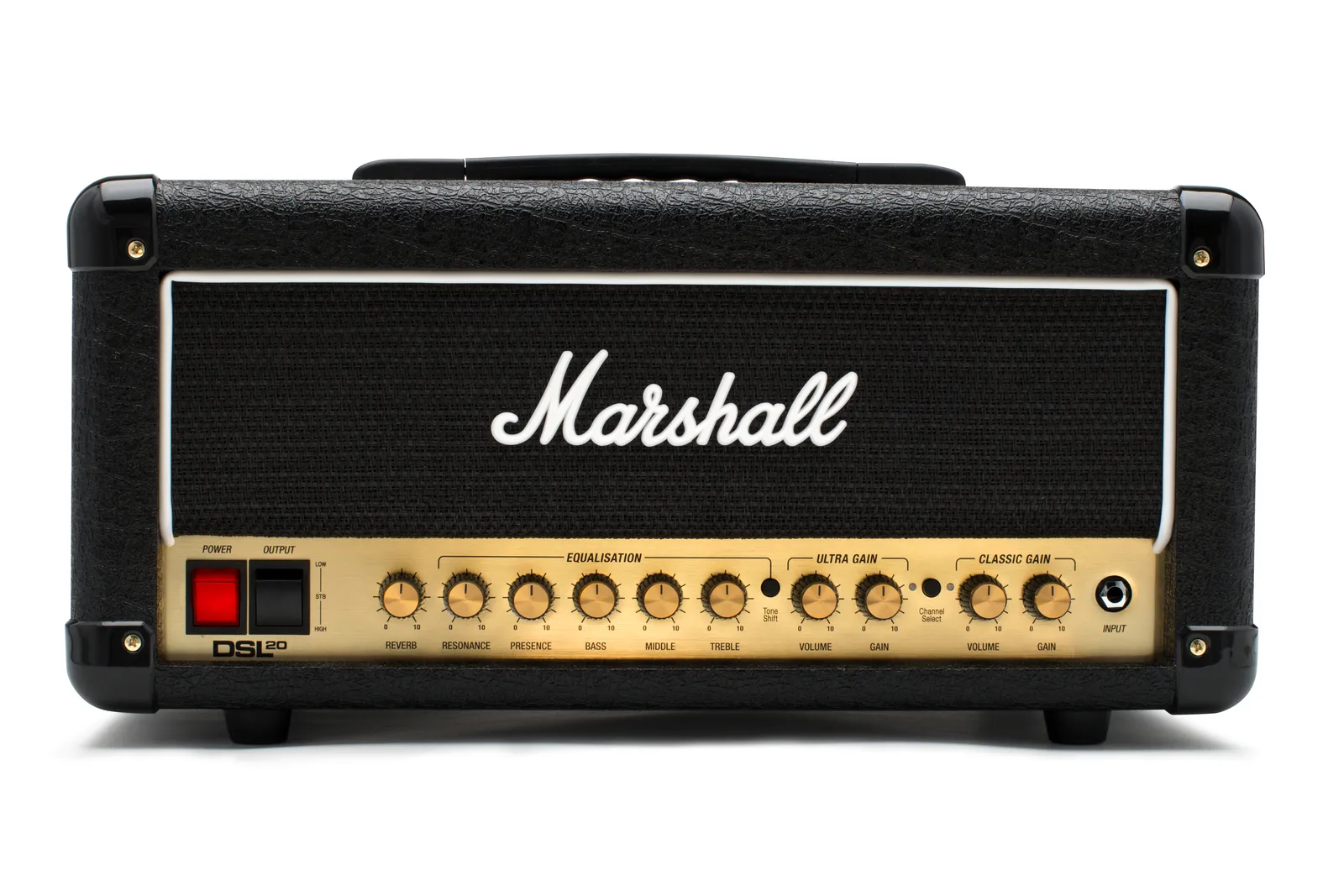

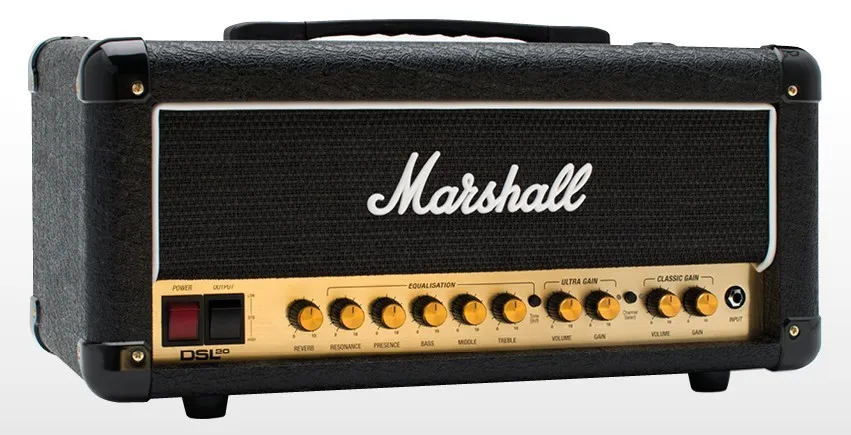

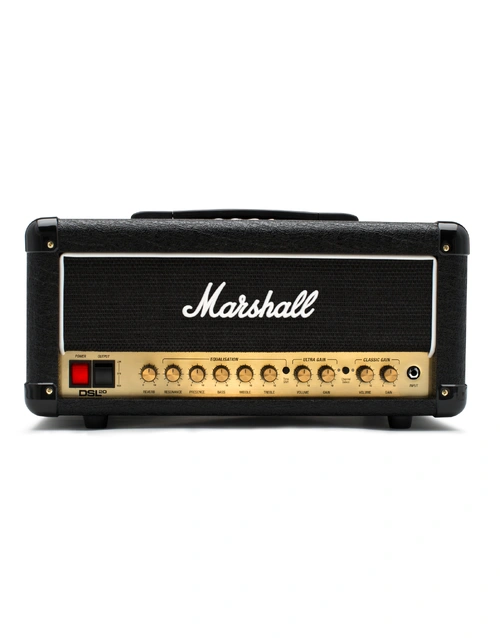

Marshall DSL20H: 20W Valve Head
$889.00
RRP $1,199.00
Brisbane:
Not available in store but may be available to order - contact us for more info
Out of Stock
Gold Coast:
Not available in store but may be available to order - contact us for more info
Out of Stock
Marshall products only available for purchase from the Brisbane store
Calculate Shipping
Watch video
ELECTRONICS
Output wattage: 20W (with power reduction option to 10W)

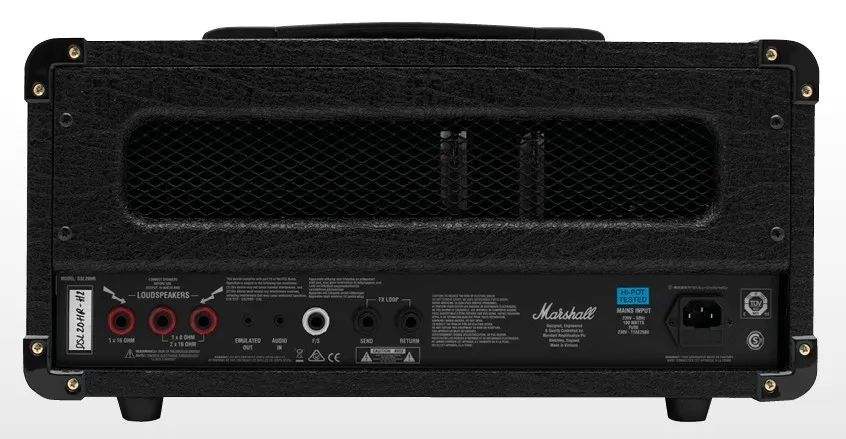

Outputs: Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), 1 x 3.5mm jack emulated line out
Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, footswitch
Controls: Reverb, resonance, presence, bass, middle, treble, tone shift switch, ultra gain channel (volume, gain), channel select switch, classic gain channel (volume, gain), power reduction option (on rear)
Effects: Digital reverb
Effects loop: Yes, series, send/return
VALVES
Preamp valves: 3 x ECC83
Power amp valves: 2 x EL34
ACCESSORIES
Footswitch: PEDL-90012 included
Cable: Detachable power cable included
Dust cover: M-COVR-00117 (sold separately)
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight: 9.7 kg / 21 lbs
Width: 500 mm / 19.7"
Height: 250 mm / 9.8"
Depth: 240 mm / 9.4"
The DSL20H is for those who need the full rich tone of a valve amp in a compact and portable format. From the moment you plug in, the DSL provides you with the functionality you need to take your sound from rehearsal to the studio with confidence.
GENERAL
Model: DSL20HR
Range: DSL
Technology: Valve
Channels: 2 (Split) "Ultra gain" and "classic gain"
Model: DSL20HR
Range: DSL
Technology: Valve
Channels: 2 (Split) "Ultra gain" and "classic gain"
ELECTRONICS
Output wattage: 20W (with power reduction option to 10W)
Outputs: Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), 1 x 3.5mm jack emulated line out
Inputs: 1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, footswitch
Controls: Reverb, resonance, presence, bass, middle, treble, tone shift switch, ultra gain channel (volume, gain), channel select switch, classic gain channel (volume, gain), power reduction option (on rear)
Effects: Digital reverb
Effects loop: Yes, series, send/return
VALVES
Preamp valves: 3 x ECC83
Power amp valves: 2 x EL34
ACCESSORIES
Footswitch: PEDL-90012 included
Cable: Detachable power cable included
Dust cover: M-COVR-00117 (sold separately)
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight: 9.7 kg / 21 lbs
Width: 500 mm / 19.7"
Height: 250 mm / 9.8"
Depth: 240 mm / 9.4"
(76DSL20H)
| SKU | 76DSL20H |
| Brand | Marshall |
| Shipping weight | 13.6000kg |
| Shipping width | 0.416m |
| Shipping height | 0.416m |
| Shipping length | 0.416m |
| Shipping cubic | 0.071991000m3 |
