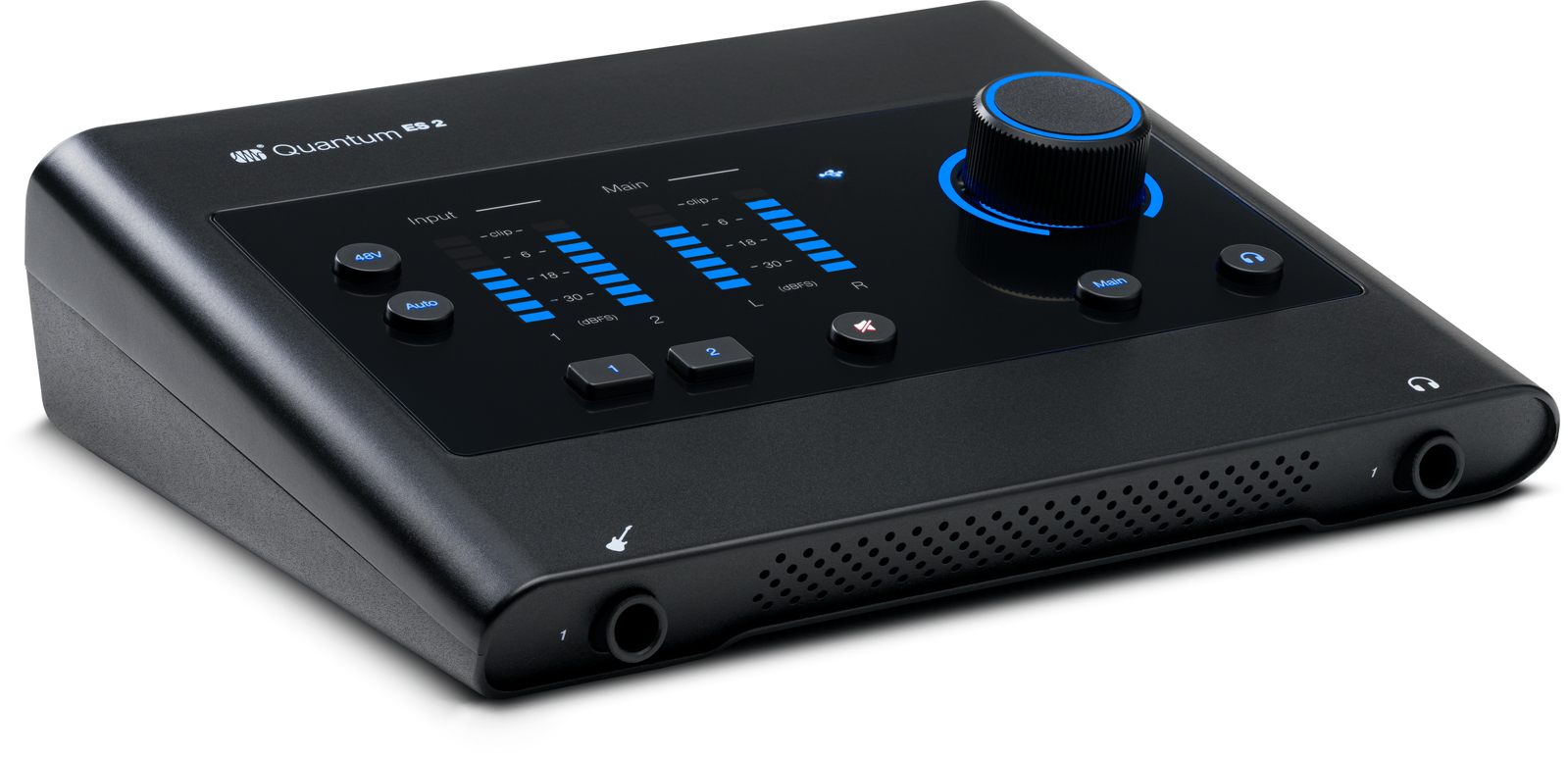

Presonus Quantum ES 2 2x2 USB-C Audio Interface
Presonus Quantum ES 2 2x2 USB-C Audio Interface
The PreSonus Quantum ES 2 is a compact yet powerful 2x2 USB-C audio interface designed for musicians and creators who demand professional-grade sound. Featuring newly designed MAX-HD mic preamps with +75 dB of gain, it ensures pristine, low-noise recordings with precise digital control. A front-facing instrument input, co-developed with Fender, delivers optimised tone for guitarists and bassists. The Auto Gain function simplifies setup, automatically setting ideal levels for microphones and instruments. With the Universal Control app, you can adjust settings from any device, making it a seamless addition to any workflow. A 6-month Studio One Pro+ membership is included, providing access to industry-leading recording software and add-ons.
At Riffs & Licks Music, we think the Quantum ES 2 is the perfect choice for home producers and musicians looking for a high-quality, intuitive interface with outstanding sonic performance.
Specifications
| Feature | Specification |
|---|---|

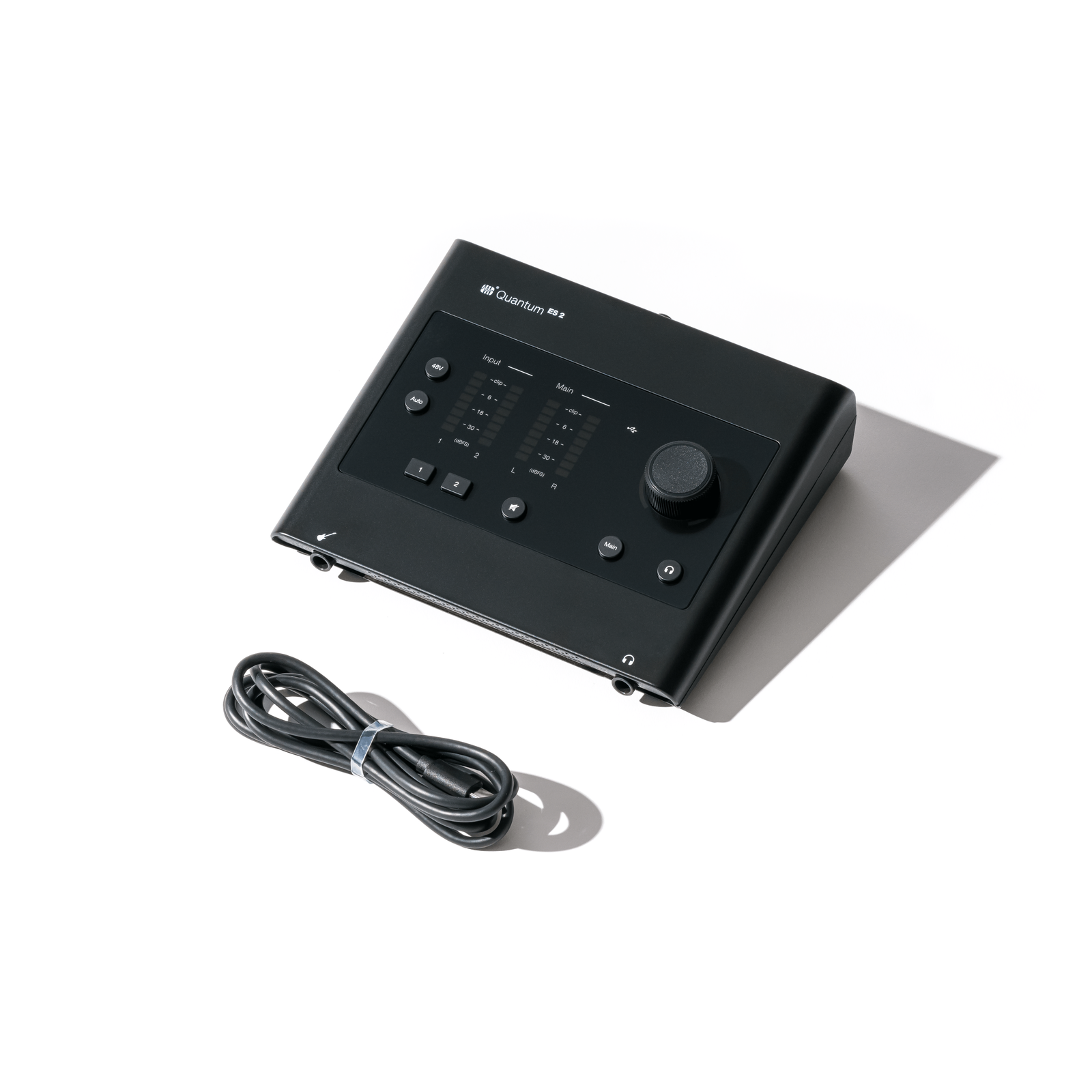

| Included Accessories | 1.5M USB-C to USB-C cable |
| Connectivity | USB-C |
| Headphone Jack | One - 1/4" TRS Female Stereo |
| Phantom Power | +48 VDC |
| Color | Black |
| Product Name | Quantum ES 2 USB-C Audio Interface |
| Series | Quantum |
| Instrument Inputs Dynamic Range | 111 dB (A-Weighted, Minimum Gain) |
| Instrument Inputs Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) |
| Instrument Inputs Gain Range | 75 dB |
| Instrument Inputs Maximum Level | +15 dBu (Unbalanced, Minimum Gain) |
| Line Inputs Dynamic Range | 114 dB (A-Weighted, Minimum Gain) |
| Line Inputs Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Line Inputs Gain Range | +/- 10 dB |
| Line Inputs Impedance | 10K Ohms |
| Line Inputs Maximum Level | +15 dBu (Balanced, Minimum Gain) |
| Line Inputs Total Harmonic Distortion | 0.001% (1 kHz, Minimum Gain) |
| Microphone Input Connection Type | XLR Female (Combo), Balanced |
| Microphone Preamp Dynamic Range | 113 dB (A-Weighted, Minimum Gain) |
| Microphone Preamp Equivalent Input Noise | -129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted) |
| Microphone Preamp Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) |
| Microphone Preamp Gain Control Range | 75 dB |
| Microphone Preamp Input Impedance | 1600 Ohms |
| Microphone Preamp Maximum Input Level | +14 dBu (Balanced, Minimum Gain) |
| Microphone Preamp Total Harmonic Distortion | 0.001% (1 kHz, Minimum Gain) |
| Product Depth | 6.2" (158 mm) |
| Product Height | 1.9" (48.3 mm) |
| Product Width | 6.9" (175 mm) |
| Commodity Code | 8517620000 |
| Supported Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 (kHz) |
| Headphone Outputs Dynamic Range | 111 dB (A-Weighted) |
| Headphone Outputs Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) |
| Headphone Outputs Impedance Working Range | 22 Ohms |
| Headphone Outputs Maximum Output | 7.5 dBu (50 Ohms) |
| Headphone Outputs Total Harmonic Distortion | 0.02% (1 kHz) |
| Main And Line Outputs Dynamic Range | 117 dB (A-Weighted) |
| Main And Line Outputs Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Main And Line Outputs Maximum Level | +15 dBu (Balanced) |
| Main And Line Outputs Output Impedance | 51 Ohms |
| Main And Line Outputs Total Harmonic Distortion | 0.001% (1 kHz, +4 dBu) |
| Main Outputs Connection Type | 1/4" TRS Female |
| Digital Audio Bit Depth | 24-bit |
| Digital Audio Dynamic Range | 120 dB |
(PRE-QUANTUM-ES2)
| SKU | PRE-QUANTUM-ES2 |
| Brand | Presonus |
| Shipping weight | 2.7000kg |
| Shipping width | 0.260m |
| Shipping height | 0.130m |
| Shipping length | 0.310m |
| Shipping cubic | 0.010478000m3 |
