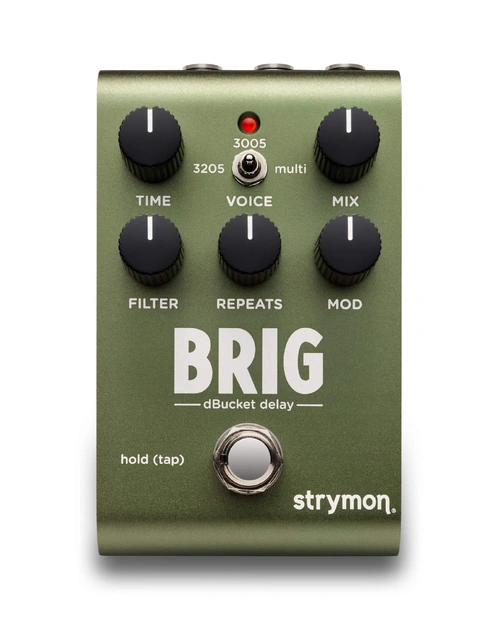

Strymon Brig dBucket Delay Pedal
Elevate Your Sound with Captivating Analogue Delays
Step into a world of enchanting delay repeats and unleash your musical creativity with the Strymon Brig dBucket Delay Pedal. This exceptional pedal goes beyond mere repetition, offering a rich, evolving experience that inspires and fuels your music.
Brig's dBucket sound generation delivers three meticulously crafted analogue delay voicings, each with its own unique charm. The 3205 voice provides gritty repeats that transform as they feed back, producing everything from classic slapback echoes to mind-bending sci-fi effects. The 3005 voice recreates a dual MN3005 BBD chip circuit at 15V, delivering warm, dreamlike repeats with longer delay times and higher headroom. Lastly, the Multi voice combines two cross-coupled dBucket delay lines, creating expansive soundscapes and a massive stereo soundfield while remaining musical and clean, even on the edge of self-oscillation.
Compact yet powerful, the Brig pedal offers versatility in an elegantly small form factor. Enjoy artifact-free tap tempo, stereo operation, and responsive controls, along with expression pedal capability for added control. The high-impedance, ultra-low noise discrete Class A JFET stereo input preamp ensures exceptional touch sensitivity, dynamics, and feel, elevating your playing experience to new heights. Additionally, MIDI control allows for tempo adjustments, patch save/recall, and more, while the USB jack enables seamless pedal control via MIDI from your computer and facilitates firmware updates.
At Riffs & Licks Music, we think the Strymon Brig dBucket Delay Pedal is another masterpiece from Strymon. Whether you're crafting intricate soundscapes, adding depth to your solos, or experimenting with innovative tones, the Brig pedal will be your most trusted ally on the musical journey ahead.
Brig Delay Voices
| 3205 | Gritty repeats that can morph as they feed back, creating sounds ranging from gorgeous slapback echoes to psychedelic sci-fi effects |
| 3005 | Recreates a dual MN3005 BBD chip circuit running at 15V for longer delay times, higher headroom, and warm repeats with a soft, dreamlike quality |
| Multi | Features two cross-coupled, super-clean dBucket delay lines with golden ratio timing to create complex soundscapes and a huge stereo soundfield that remains musical and clean even while sitting on the edge of self-oscillation |
Features
| Voices | Brig’s voices are crafted with an attention to detail that encompasses not only the characteristics of the BBD chips, but also the surrounding circuitry responsible for turning those early designs into the classics they are considered today. Companding, filtering, and noise reduction techniques played important parts in the final sound and dynamic response of those time-honoured delay circuits, and Brig has captured them all. |
| Modulation | Brig’s modulation is individually voiced for each of the three delay types, and was carefully tuned to create beautifully lush modulation at any delay time or modulation speed. And while the Multi delay voice with its dual cross-coupled ping-pong delay lines would seem the obvious go-to for creating a huge stereo field, Brig’s modulation is designed to produce awesome stereo effects with the 3205 and 3005 voices as well. To reveal a hidden superpower, set the 3205 voice to its minimum 30ms delay time and turn up the modulation for sumptuous bucket brigade chorus effects. |
| Repeats | Classic bucket brigade delays created a unique variety of instantly recognizable, sought-after feedback effects, and Brig faithfully and organically reproduces the same sounds and experience. Brig’s smooth, responsive controls and remarkable dBucket sound engine invite you to crank up the repeats, twist the Time knob, adjust the filter, and get lost in vintage sci-fi psychedelia. Besides all the fun to be had by pushing Brig into full self-oscillation, just sitting on the edge of runaway feedback can create intriguing sound beds under your lead or rhythm playing. As an added bonus, each of Brig’s three delay voicings has its own distinct feedback characteristics, so you can tailor the feedback response to fit the sound you’re going for. |
| Filter | A whisper of gentle noise is part of the sound of bucket brigade analogue delay repeats (which is traditionally shaped and controlled by companding and filtering processes in the analogue domain), and all of that sonic detail and organic behaviour is part of the sound of Brig. Especially with the 3005 voice, the subtle noise adds a dreamlike quality to the repeats. Lovely as it is, the noise is also optional, and is easily dialled out by turning the filter knob clockwise past 2 o’clock. Brig’s filter is customized for each voice, controlling not only noise level and EQ for repeats but bucket loss as well. |
| Tap Tempo | Modern technology FTW: Tapping in tempos with Brig works in a seamless way that would be impossible with a real analogue delay. Confidently tap your tempos with no pitch shifting, no clicks, ramps or mutes. All those glorious and unique bucket brigade pitch-shifting, spaceship-launching and delay character-modifying effects are always available when setting tempo with the Time knob, but when tapping tempo, Brig changes to new values smoothly and keeps you in the groove. And once tempo has been tapped in, you can use the Time knob to set the Tap Division for triplet, eighth, dotted eighth, or quarter note. |
| MIDI | Brig features full MIDI implementation and 300 presets, allowing you to control it remotely by sending MIDI commands from your controller or DAW via the EXP/MIDI jack or USB-C connection. Remotely bypass or engage the pedal, automate decay time or other knob adjustments in your DAW or recall unique presets for each song on your setlist — the possibilities with MIDI are limitless. |
| True/Buffered Bypass | Brig lets you choose between electromechanical relay-switched true bypass for a 100% untouched and unprocessed signal when the pedal is not engaged (which is the default), or Strymon's premium buffered bypass, which preserves your signal’s integrity by preventing the high frequency roll-off that can happen due to longer cable runs. |
| JFET Input | Uncompromised dynamics and feel. Exceptional touch sensitivity and responsiveness. Brig feels just as good as it sounds, thanks to a high-impedance, ultra-low noise and discrete Class A JFET preamp input. |

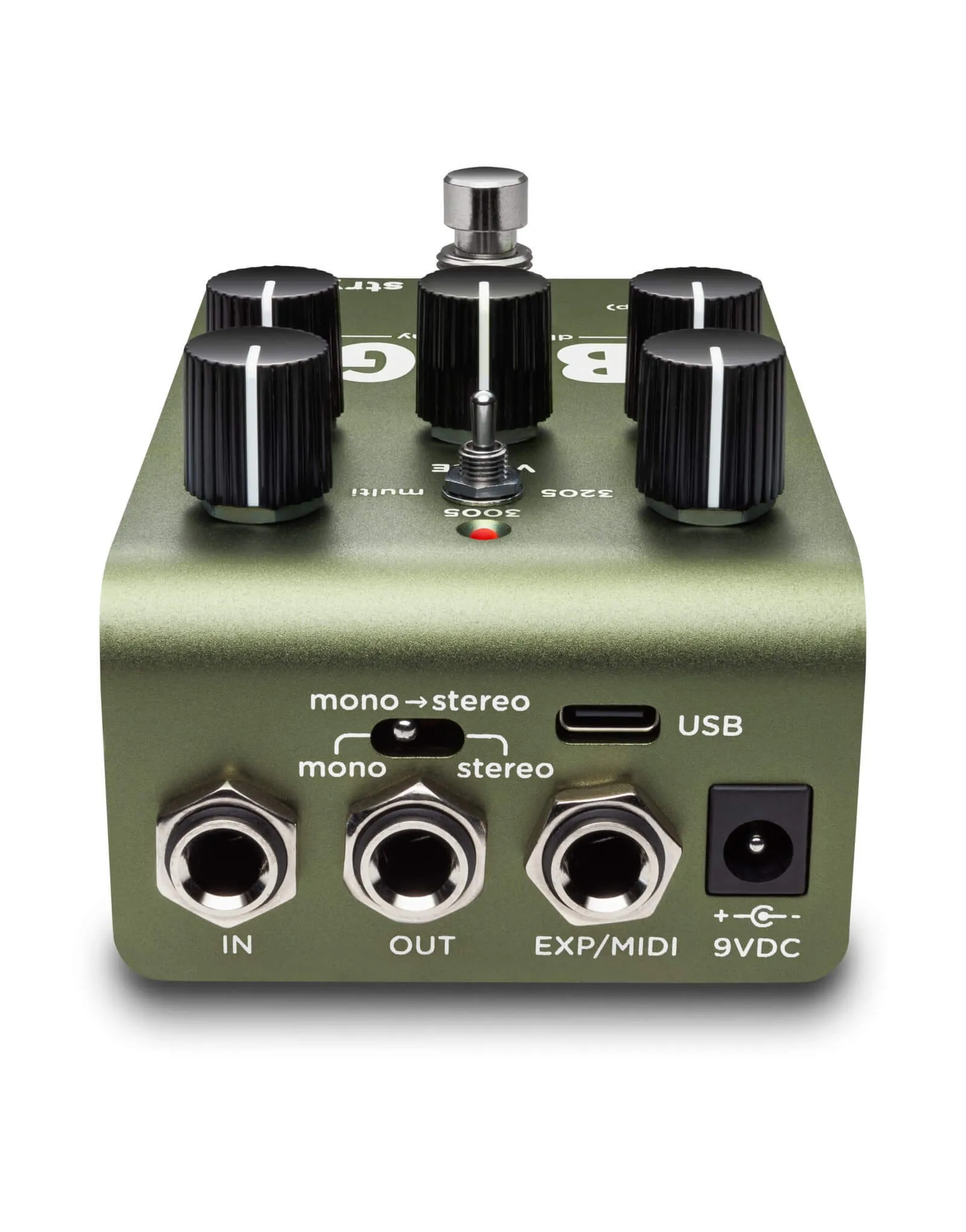

| Stereo | Even though it might look like it’s a standard mono effect, there’s no need to make compromises when it comes to signal routing or pedal placement with Brig — it’s a stereo delay pedal with full stereo in/out capabilities. Equipped with a single TRS input and TRS output jack, the pedal keeps to a compact form factor while still giving you the option to use it in stereo. A dedicated rear panel Input switch allows you to determine the audio routing, selecting between Mono In → Mono Out, Mono In → Stereo Out, or Stereo In → Stereo Out (stereo in and out requires a TRS cable for each jack). |
| ARM Processor | An evolution in technology led by mobile phones and laptop computers now allows Strymon pedals to perform more simultaneous processes than ever before, and with significantly less power draw. That means more processing power for every sonic nuance, and less power consumption on your pedal board. |
Specifications
| Ins, Outs & Switches | High impedance ultra low-noise discrete Class A JFET TRS stereo input |
| Low impedance TRS stereo output | |
| Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch, MultiSwitch Plus, or TRS MIDI connection | |
| USB jack for controlling via MIDI from a computer or for performing firmware updates | |
| Audio Quality | Premium JFET analogue front end |
| Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide uncompromising audio quality | |
| 520MHz ARM Superscalar processor | |
| 32-bit floating point processing | |
| 20Hz to 20kHz frequency response | |
| Audio Input Impedance: 1M Ohm | |
| Audio Output Impedance: 100 Ohm | |
| Typical signal to noise ratio: 116dB | |
| Construction | Lightweight and rugged anodized green aluminium chassis |
| Designed and built in the USA | |
| Dimensions: 117mm x 69mm x 64mm |
(SN-BRIG)
| SKU | SN-BRIG |
| Barcode # | 0852571008431 |
| Brand | Strymon |
| Shipping weight | 0.7000kg |
| Shipping width | 0.200m |
| Shipping height | 0.150m |
| Shipping length | 0.150m |
| Shipping cubic | 0.004500000m3 |
