T-Rex Binson Echorec Magnetic Disk Delay Replica
T-Rex Binson Echorec Magnetic Disk Delay Replica

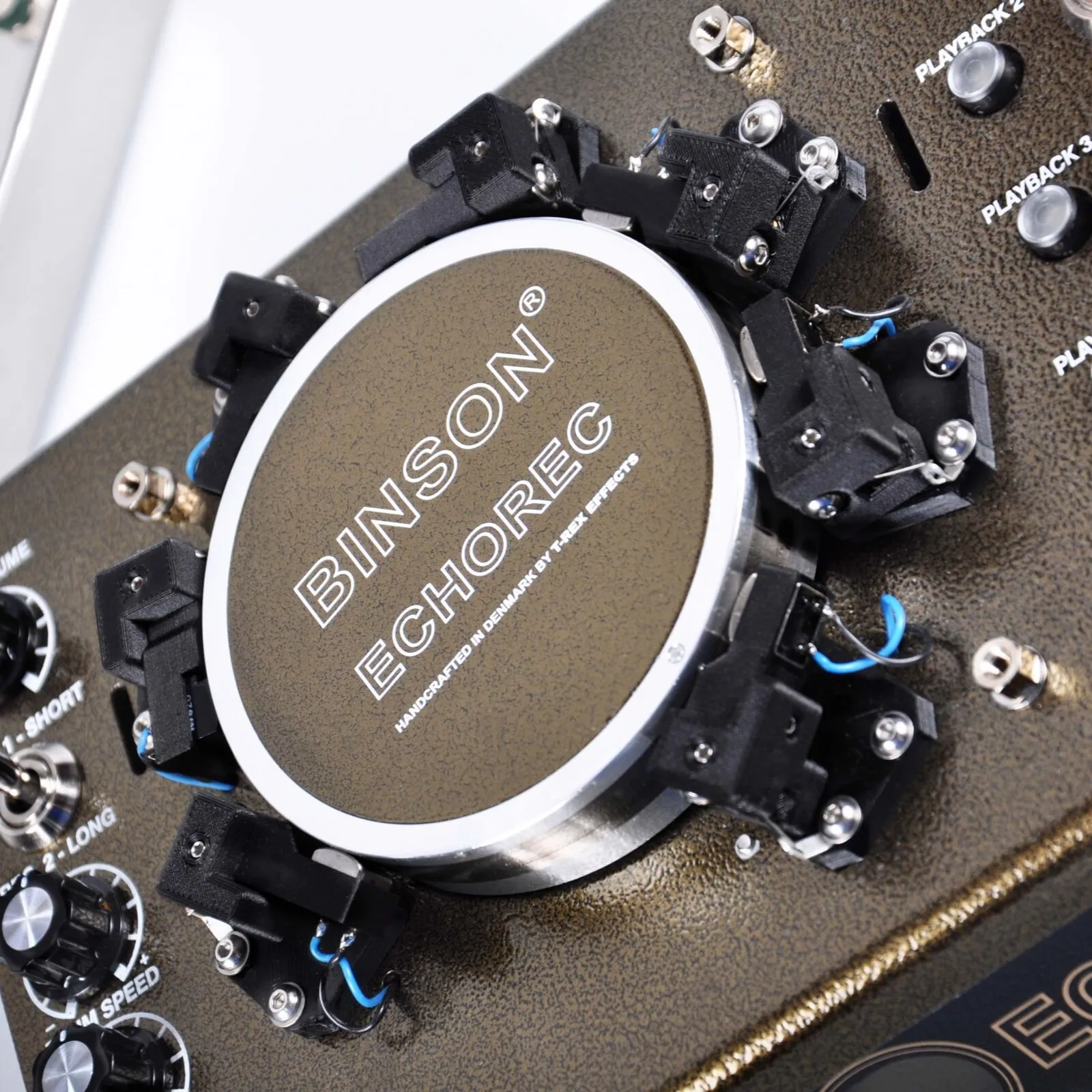

Introducing the T-Rex Binson Echorec Magnetic Disk Delay Replica, reborn by T-Rex Effects Denmark! Recapture authentic echoes from the 1950s used by legends like David Gilmour and John Bonham. With rotating metal drum technology, two recording heads, four playback heads, and adjustable drum speed, create unique echoes and swells. The magic eye helps monitor input levels, and studio-friendly features like balanced I/O and external connections enhance versatility. Embrace the legacy of this iconic delay unit and add a touch of vintage magic to your sound.
At Riffs & Licks Music, we think the T-Rex Replay Box Stereo Delay Pedal perfectly captures the allure of vintage echoes, giving you access to the iconic sounds that shaped the music of a bygone era, all in a modern and convenient package.
Features
| Two recording heads with short and long delays |
| Adjustment of drum speed +/- 20% |
| Four individual and switchable Playback heads |
| Four individual-level adjustments of the Playback heads |
| Magic eye to determine input levels |
| Balanced in/out-put for studio use |
| Selection between Repeats and Swell |
| Connection for external drum speed adjustment |
| Connection for external Bypass |
Specifications
| Input Impedance @ 1KHz | 500K Ohm |
| Output impedance @ 1KHz | 1K Ohm |
| Power supply (Included) | 24V DC, centre negative, 2.0mm centre pin |
| Current draw @ 24VDC | 300 mA |
| Maximum input signal Vp-p | Adjustable |

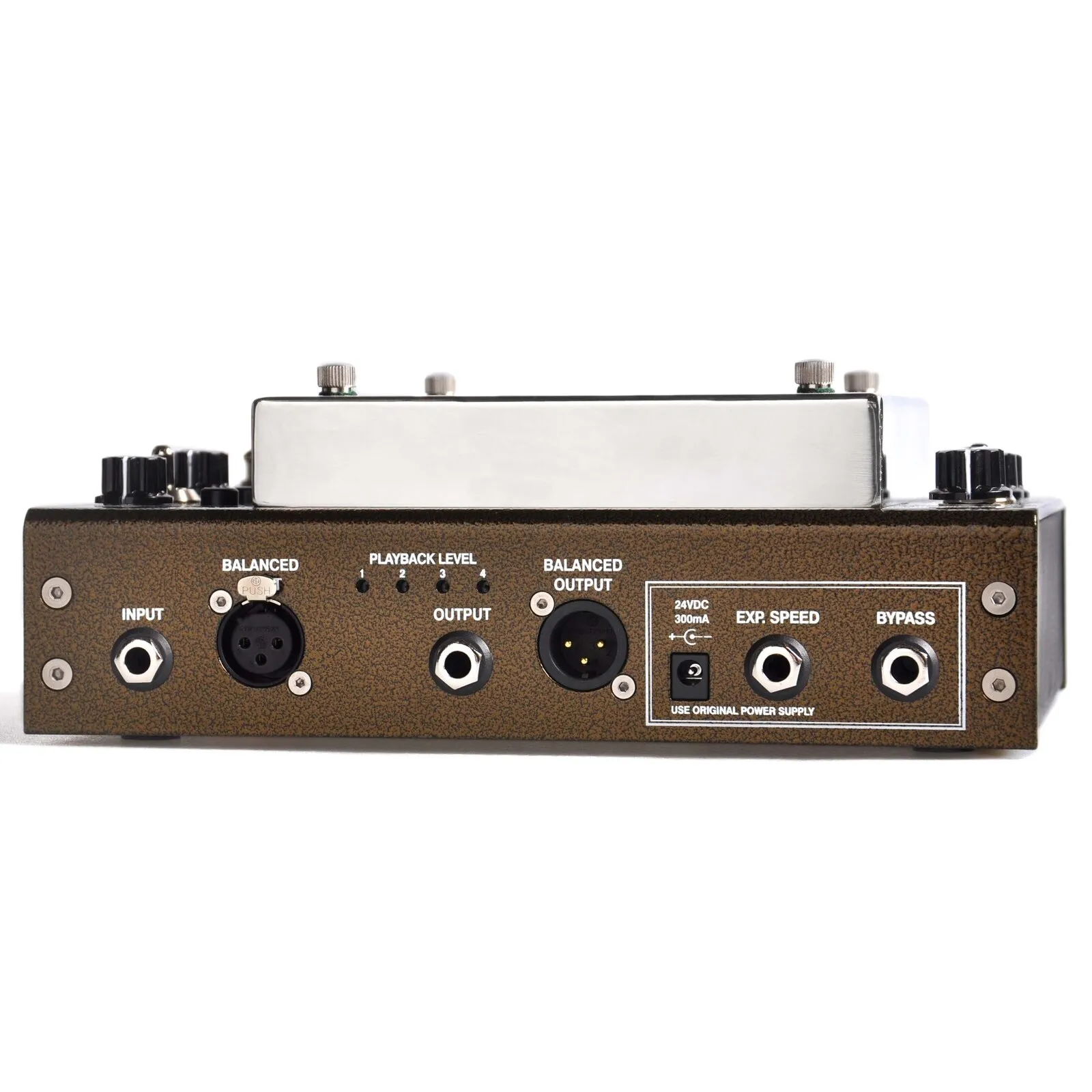

| External connectors | input jack, output jack, DC inlet |
| Controls | Echo Volume, Switch for Record Head 1-Record Head 2, Drum Speed, Record Level, Playback Heads 1 to 4, Repeat, Switch for Repeats and Swell, Echo Tone, Bypass Switch and Indicator |
| Pedal size incl. knobs (W x H x D) | 100 x 250 x 190 mm |
| Weight | 2.6kg |
(TR10200)
| SKU | TR10200 |
| Brand | T-Rex |
| Shipping weight | 2.8000kg |
| Shipping width | 0.250m |
| Shipping height | 0.150m |
| Shipping length | 0.300m |
| Shipping cubic | 0.011250000m3 |
