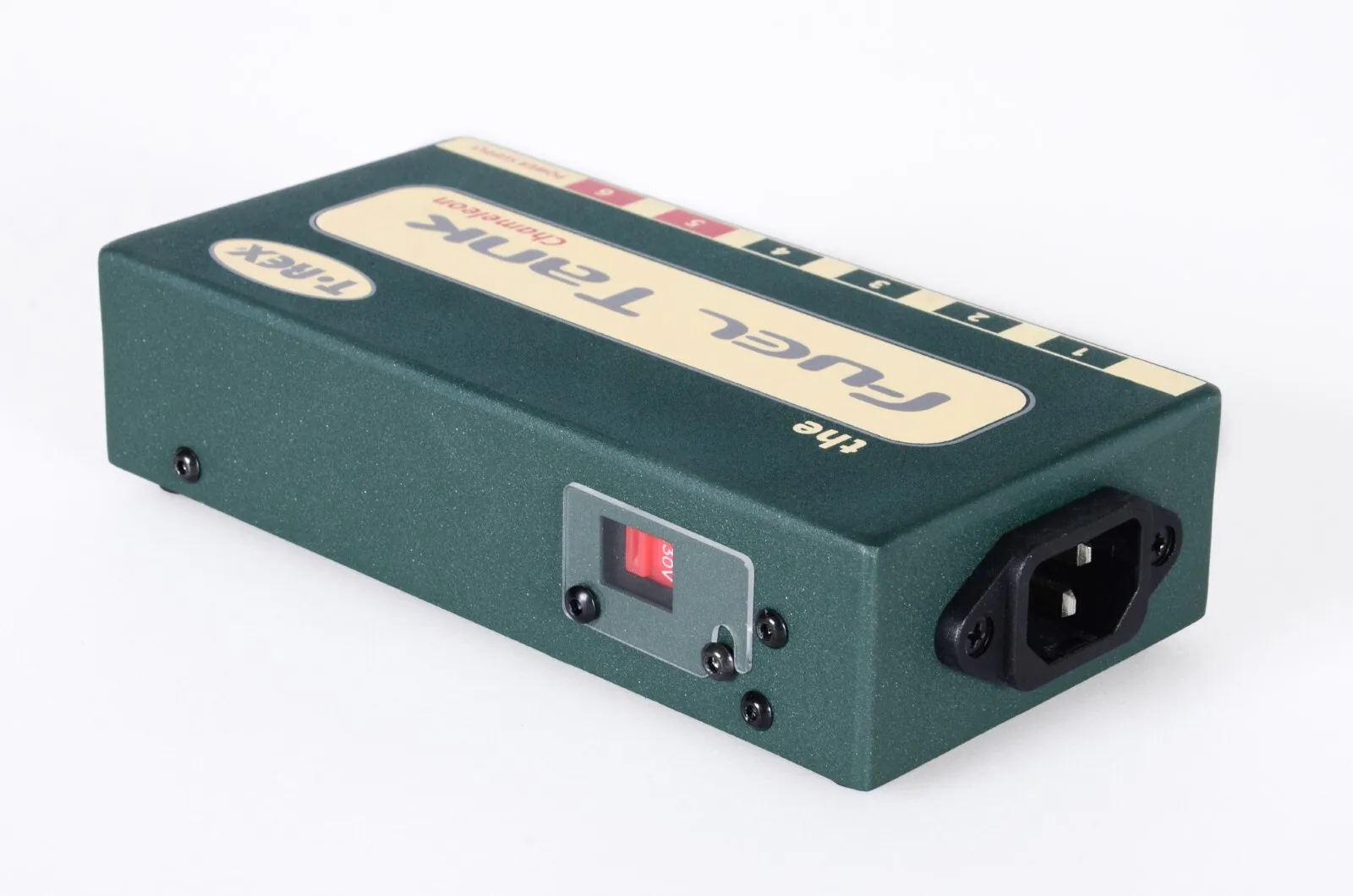

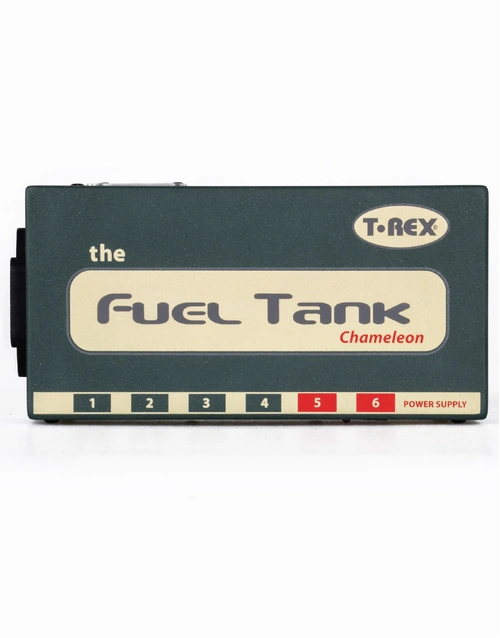

T-Rex Chameleon Fuel Tank Power Supply
T-Rex Chameleon Fuel Tank Power Supply
Introducing the T-Rex Chameleon Fuel Tank Power Supply, the ultimate solution for players with diverse pedal setups. This versatile power supply offers four separate voltage options, making it the most flexible addition to the Fuel Tank family.
With 5 x 300 mA outputs (3x 9V DC/ 12V DC; 1 x 9V DC / 18V DC; 1x 9V DC / 12V DC / 12V AC), the Fuel Tank Chameleon empowers players with large pedal boards to optimize their setups. It provides unprecedented versatility, ensuring all your pedals receive the right power they need.
At Riffs & Licks Music, we think the T-Rex Chameleon Fuel Tank Power Supply is a rugged and versatile solution for offering reliable and customizable power that meets the needs of some of the most complex pedal configurations.
Please check features and specifications below to ensure this power supply meets the needs of your pedal set-up.
Features
| 5 outputs each with 300 mA (= 1500 mA) |
| Output 5/6 choice of either 9/12v DC or 12v AC |
| Choice of 9V DC, 12V DC, 12V AC or 18VDC -150mA |
| Noise-cancelling galvanic isolated outputs |
| Traditional EI Transformer |
| Several different voltage types served |
| Current doubler = the possibility of as much as 600 mA |
| Switchable 115V or 230V |
| Compact, rugged, road-ready design |
| Placement; as far away from pedals as possible (preferable at least last in the chain close to Analog/drive pedals) in order to reduce noise interference in the signal chain. |
Specifications

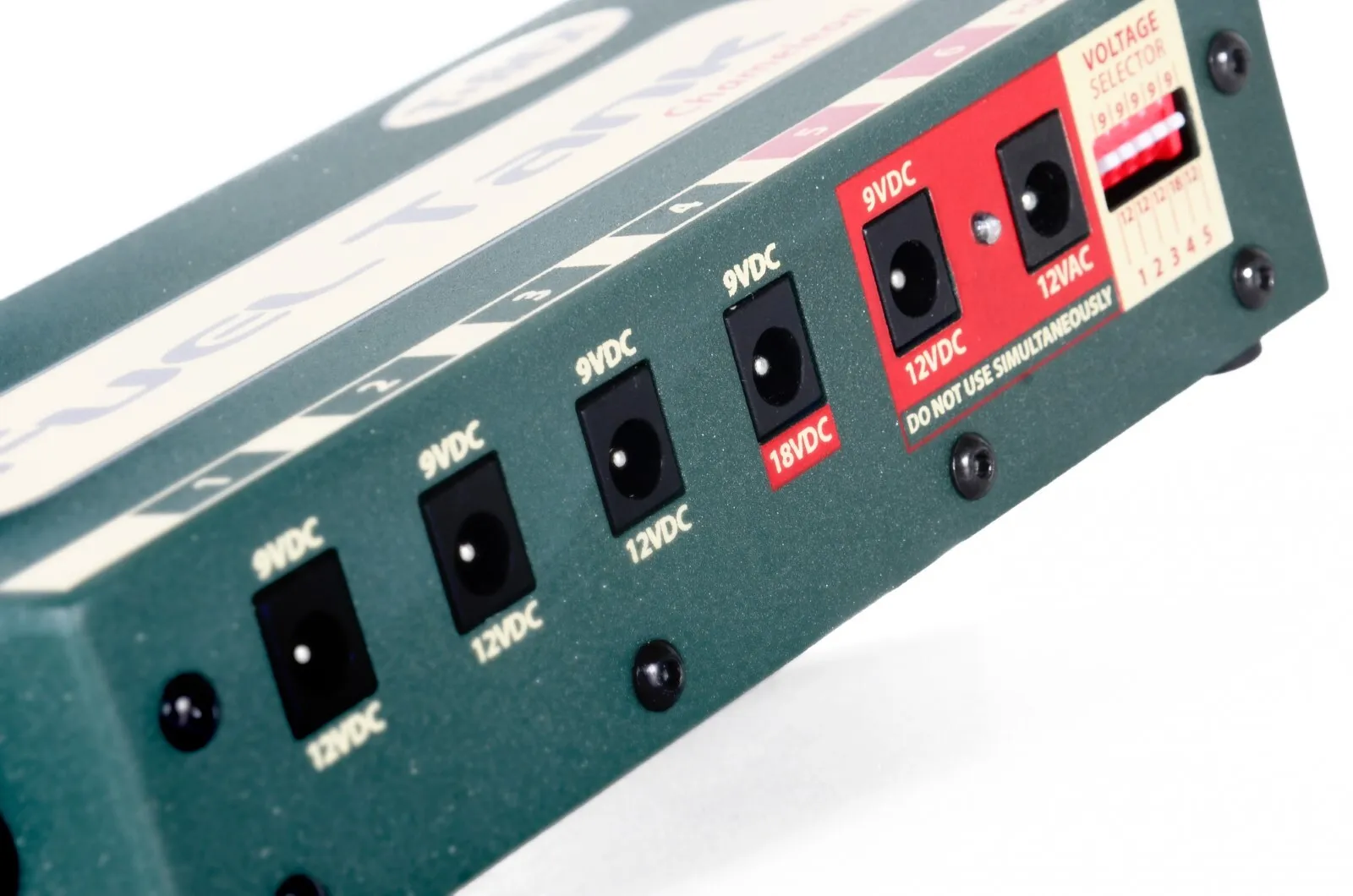

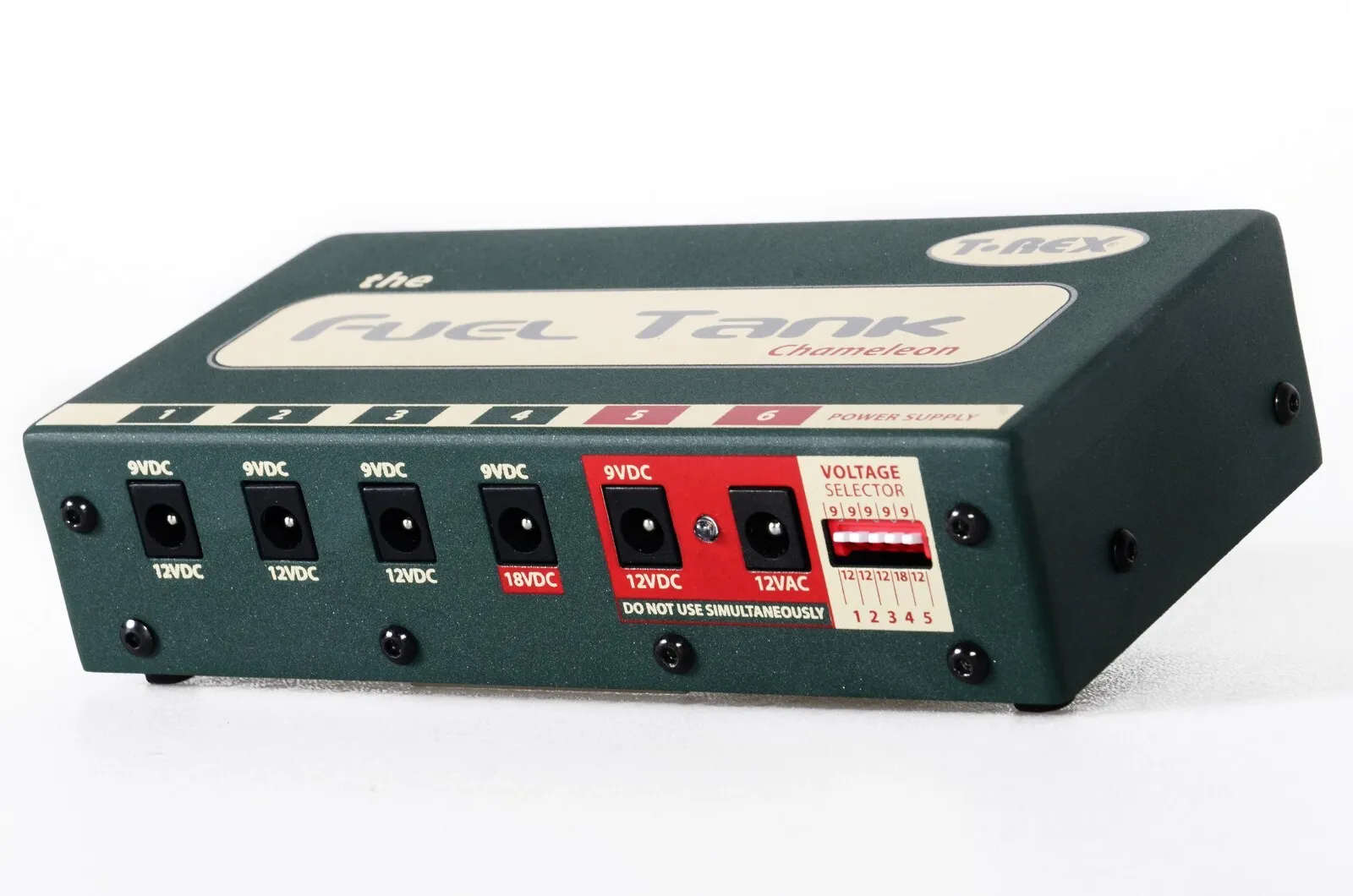

| Connections | Chameleon has 6 isolated outputs (You cannot use output 5 and 6 simultaneously): All 9V and 12V outlets delivers 300mA. When outlet 4 is switched to 18V DC it delivers 150mA All outlets are centre negative |

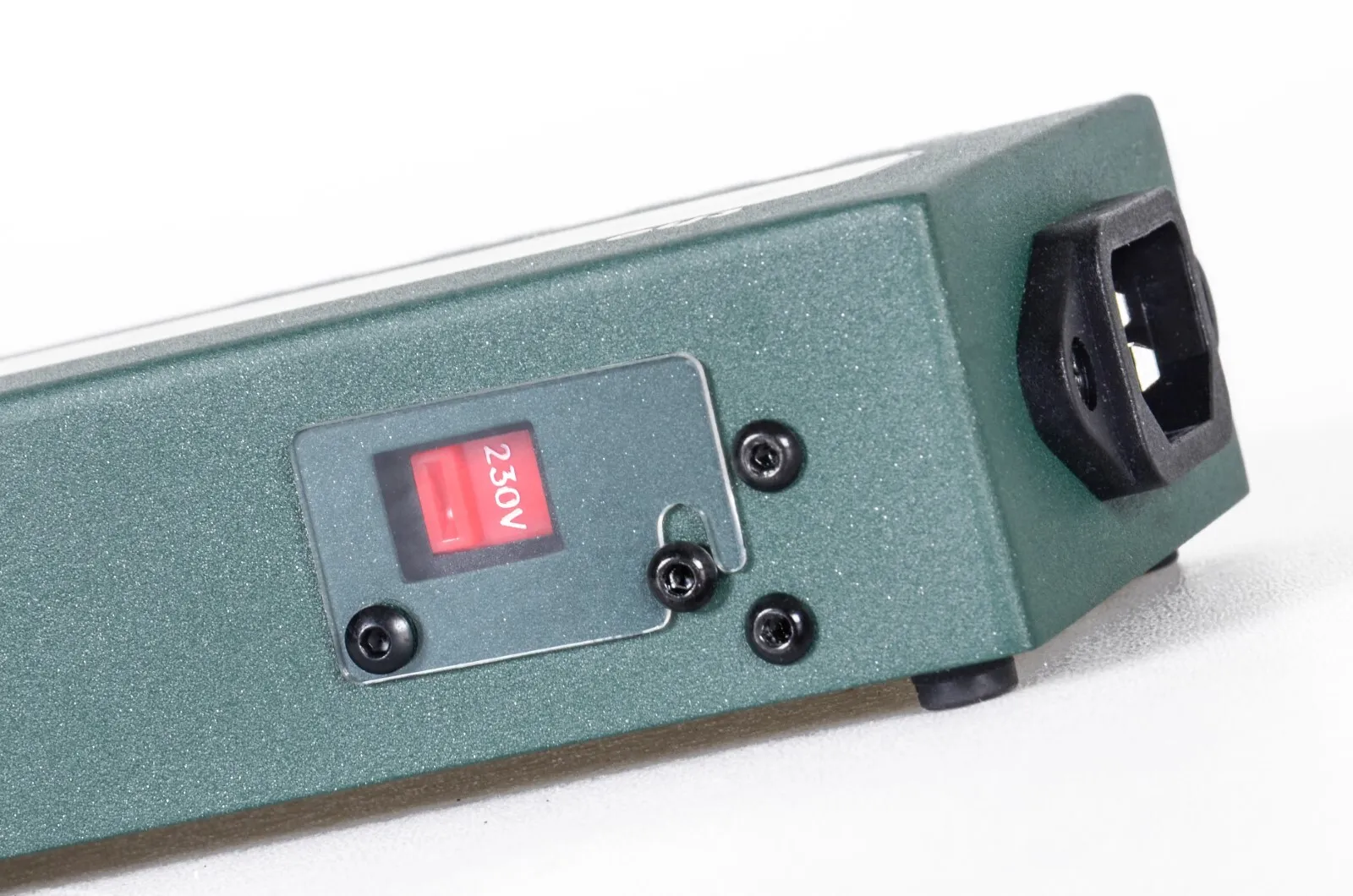

| Input Mains Voltage | Switchable 115V or 230V mains |
| Rated Power Consumption | Max. 40W |
| Fuse | T315mA/250V |
| Cables (Supplied) | 1x Red AC cable with 2,1mm - 2,5mm connectors for use on the 12V AC outlet 1x Orange polarity inverter cable with 2.1 mm barrel plug - 2.1 mm female barrel plug 1x Black DC cable with 2,1mm DC - 3,5mm mini-jack connectors 2x Black 20cm DC cable with 2,1mm - 2,1mm connector 4x Black 50cm DC cable with 2,1mm - 2,1mm connector 1x Black 75cm DC cable with 2,1mm - 2,1mm connector 1x Black 100cm DC cable with 2,1mm - 2,1mm connector 1x Mains power cable |
| Dimensions (W x H x D) | 160 x 38 x 80 mm |
| Weight | 790g |
(TR10334)
| SKU | TR10334 |
| Barcode # | 0811059013343 |
| Brand | T-Rex |
| Shipping weight | 1.0000kg |
| Shipping width | 0.100m |
| Shipping height | 0.070m |
| Shipping length | 0.200m |
| Shipping cubic | 0.001400000m3 |
