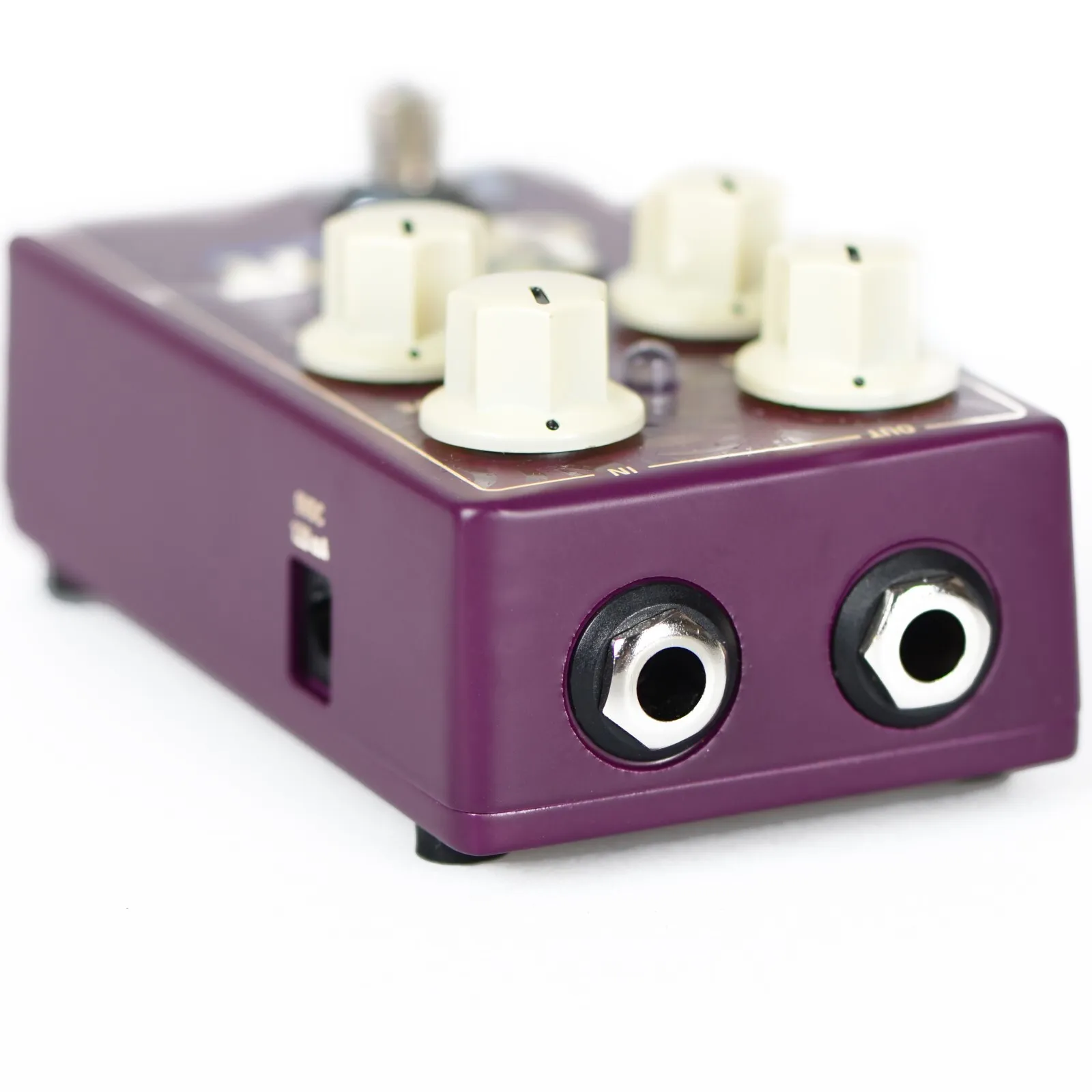

T-Rex Quint Machine Octave Pedal
T-Rex Quint Machine Octave Pedal
Dive into a realm of sonic creativity with the T-Rex Quint Machine Octave Pedal. This innovative pedal goes beyond classic octave doubling by adding a 5th up and providing individual volume controls for each modulated sound, opening a whole new world of possibilities. With the Quint Machine, you can replicate the lush sound of a 12-string, emulate an organ or a synth, and even play power chords on a single note. The ultra-fast polyphonic tracking ensures precise and responsive performance.
At Riffs & Licks Music, we think the T-Rex Quint Machine Octave Pedal is a great-quality, affordable and versatile octaver in a pedalboard-friendly format. Its versatility and exceptional tracking capabilities will keep you exploring new sounds for years to come.
Specifications
| Input Impedance @ 1KHz | > 1M Ohm |
| Output impedance @ 1KHz | < 1K Ohm |
| Power supply | 9VDC, centre negative (e.g. T-Rex FuelTank) - Not Included |
| Minimum power supply voltage | 8VDC |
| Maximum power supply voltage | 12.5VDC |
| Current draw @ 9VDC | 125 mA |
| Maximum input signal Vp-p | 3Vp-p |
| External connectors | input jack, output jack, 9VDC jack |

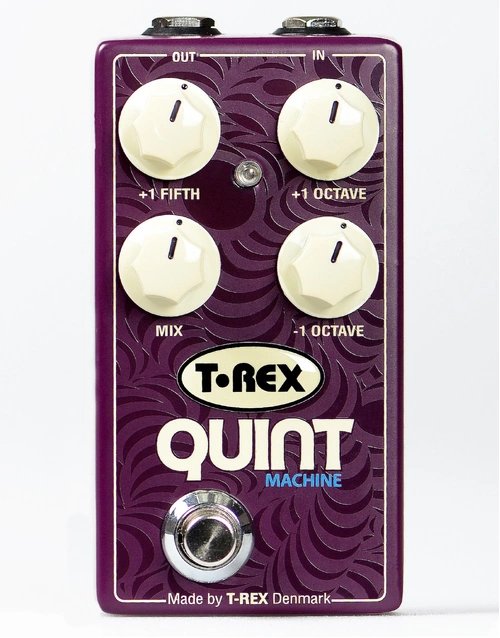

| Controls | On/off switch, mix, +1 octave, -1 octave, +1 fifth |
| Pedal size incl. knobs (W x H x D) | 60 x 50 x 117 mm |
| Weight | 210g |
(TR10094)
| SKU | TR10094 |
| Barcode # | 0811059010946 |
| Brand | T-Rex |
| Shipping weight | 0.4000kg |
| Shipping width | 0.100m |
| Shipping height | 0.070m |
| Shipping length | 0.150m |
| Shipping cubic | 0.001050000m3 |
