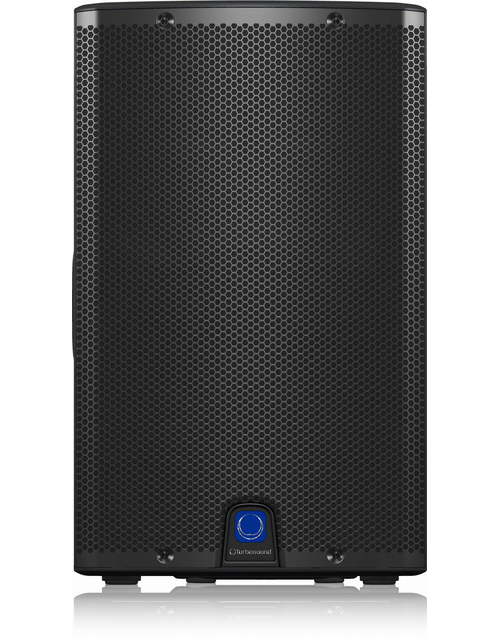

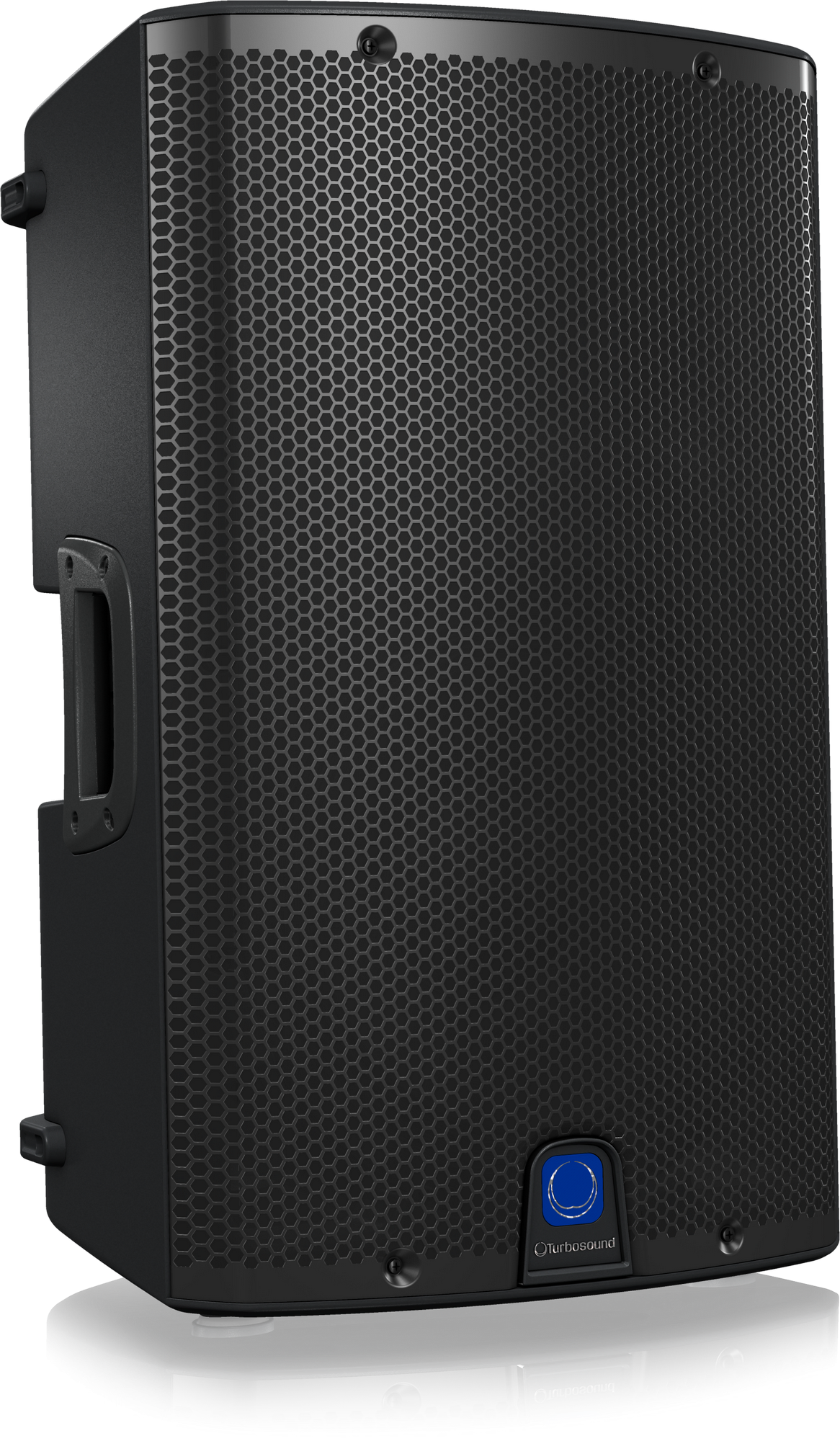

Turbosound IX12 1000W 12" Active Loudspeaker
Rock your live show with the IX12 from Turbosound
The 1000-Watt iX12 is a powered two-way 12" loudspeaker with Bluetooth* audio streaming ideally suited for a wide range of portable and fixed music and speech sound reinforcement applications. A state-of-the-art Klark Teknik DSP controls the built-in 3-channel digital mixer via a single-knob user interface, as well as providing comprehensive wireless remote control via dedicated app for iPhone/iPad. The iX12’s powerful 12" low frequency driver and 1" titanium dome compression driver ensure highest-quality low end, extended high frequency reproduction and articulate midrange reproduction.
The iX12 is fitted with a dual angle pole mount socket, allowing it to be pole mounted straight on, or raised higher and angled downwards to optimise audience coverage. The lightweight fibre glass reinforced composite enclosure is fitted with a rugged powder coated perforated steel mesh grille.
Specification
| System | |
|
Frequency Response
|
50 Hz – 20 kHz ±3 dB |
| 42 Hz – 20 kHz -10 dB | |
| Nominal Dispersion | 80° H x 60° V @ -6 dB points |
| Maximum SPL | 125 dB |
| Crossover type | Active |
| Transducers | 1 x 12" (308.5 mm) LF driver |
| 1 x 1" (25.4 mm) HF compression driver | |
| Limiter | Independent HF, LF |
| Amplifier | |
|
Maximum output power*
|
1000 W |
| Type | LF: Class-D HF: Class AB |
| Protection | Short circuit, open circuit, thermal |
| Connectors | |
|
Input A / B
|
2 x combo jack / XLR |
| Output | XLR, servo-balanced |
| Mains Supply | IEC mains connector with integrated power switch†|
| Controls | |
|
Hardware
|
Rotary push-encoder |
| Software | iOS interface via bluetooth |
| User DSP Functions | |
|
Factory EQ presets
|
Positioning, Sound mode, Phase |
| Display | LCD 128 x 32, blue, backlit |
| Equalisation | Bass and treble controls |
| Crossover | High pass L-R 24 dB/oct |
| Protection | Lock-out function for all settings |
| Bluetooth Wireless Technology | |
|
Frequency range
|
2402 MHz ~ 2480 MHz |
| Channel number | 79 |
| Version | Bluetooth 4.0 dual mode |
| Output | 8 dBM |
| Compatibility | Supports A2DP 1.2 profile, BLE |
| Maximum communication range | 35 m (without interference) |
| Connectivity | Master-slave: stereo pairing link |
| Power Supply | |
|
Power consumption
|
80 W @ 1/8 max power |
| Voltage | |
| Enclosure | |
|
Dimensions (H x W x D)
|
609 x 370 x 370 mm (24.0 x 14.5 x 14.5") |
| Net weight | 19.4kg (42.8 lbs) |
| Construction | Injection-moulded polypropylene enclosure |
| Finish | Black paint |
| Grille | Powder coated perforated steel |
| Flying hardware | - |
(452017)
| SKU | 452017 |
| Barcode # | 4033653102988 |
| Brand | Turbosound |
| Shipping weight | 23.0000kg |
| Shipping width | 0.400m |
| Shipping height | 0.400m |
| Shipping length | 0.700m |
| Shipping cubic | 0.112000000m3 |
