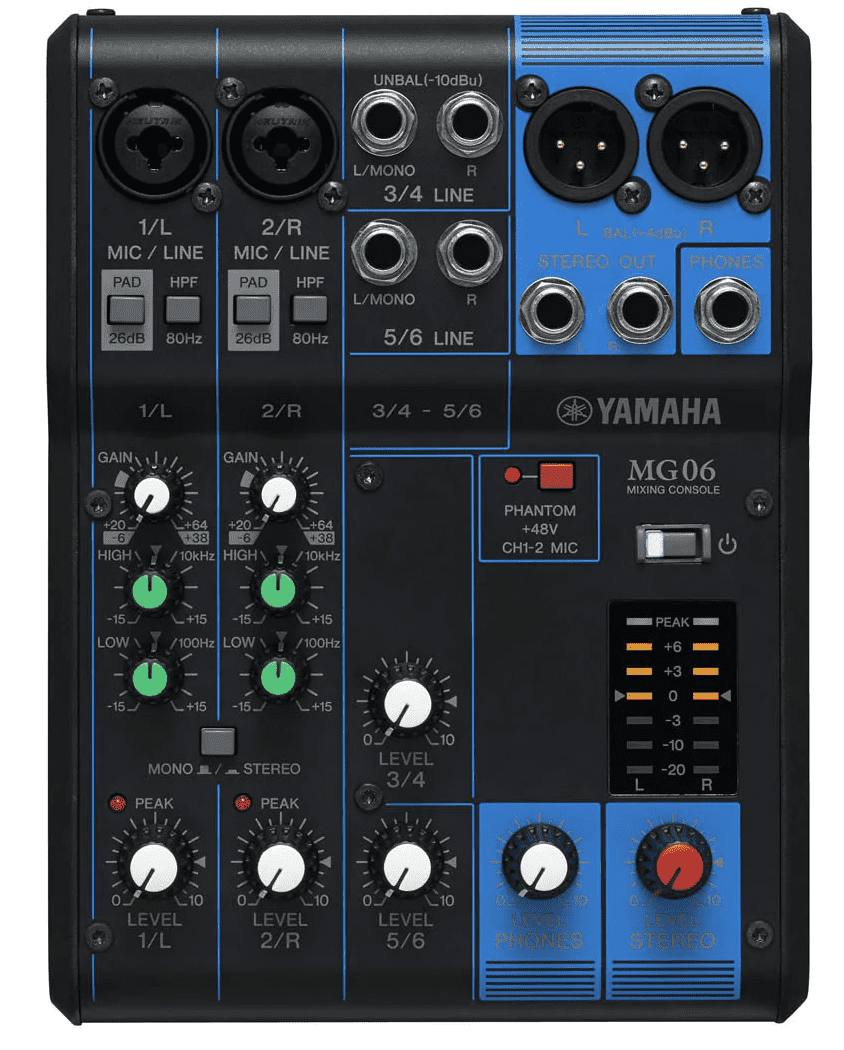

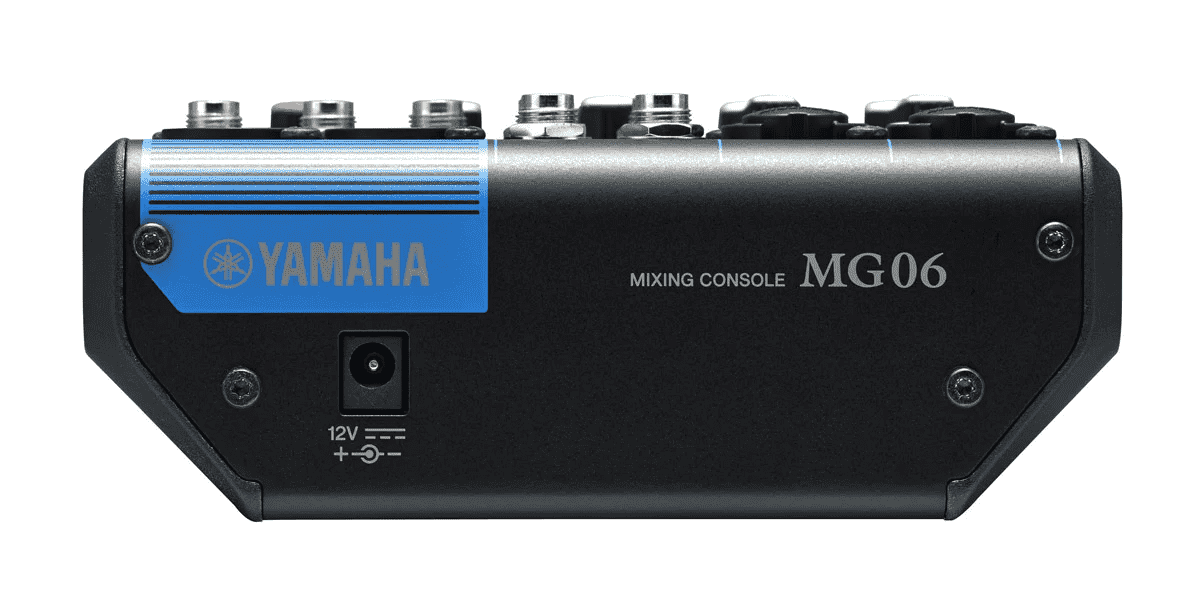

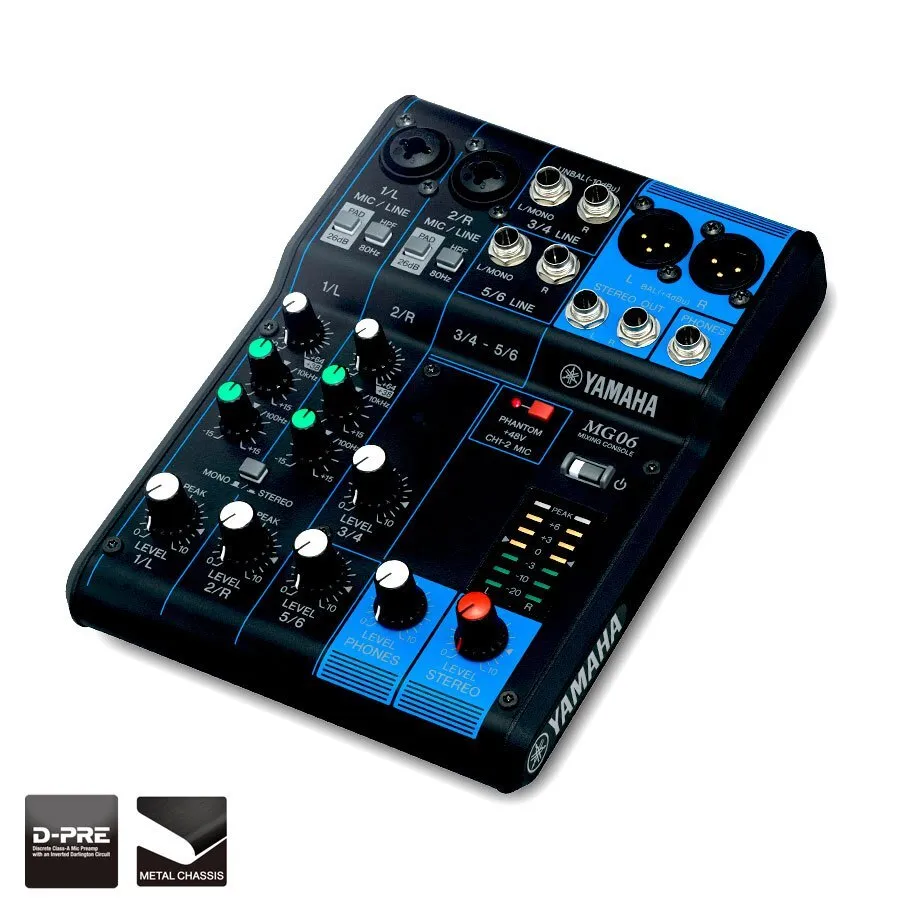

Yamaha MG06 6-Channel D-Pre Mixer
Immerse yourself in a world of pristine audio engineering with the Yamaha MG06 6-Channel D-Pre Mixer. Yamaha's unwavering commitment to delivering the purest possible sound shines through in the MG Series, where transparent sound meets exceptional quality, setting a new standard for mixing consoles in its class.
At the core of the MG06 Mixer are the D-Pre (Discrete Class-A Mic Preamps), providing a solid foundation for your audio journey. These studio-grade preamps utilize an inverted Darlington circuit, ensuring natural bass, soaring highs, and minimal distortion. With a wide frequency range, the D-Pre preamps capture every nuance of your sound source, eliminating the need for excessive EQing and additional effects processing. The quest for audio perfection continues with the custom-made MG01 op-amps, meticulously designed for superior sound quality. Yamaha collaborated closely with the semiconductor manufacturer to prioritize sound excellence over electrical efficiency, optimizing internal components and wiring to achieve superb resolution.
Phantom power and the PAD switch open doors to sonic possibilities. Utilize condenser microphones with full frequency response and high sound quality, while the PAD switch attenuates high input signals, preventing clipping and preserving your mix's integrity. The Yamaha MG Series brings professional-grade functionality to your fingertips, allowing you to shape a distinct, personalized sound. From gigging to recording and installations, the MG06 Mixer's durability is unmatched. Its rugged, impact-resistant metal chassis and thoughtful design ensure peak performance even in challenging environments, extending the lifespan of its components. Equipped with XLR connectors that lock securely, stable signal transmission is guaranteed, further reinforcing its reliability during demanding performances.
Discover a mixing console that exemplifies sonic purity and craftsmanship – the Yamaha MG06 6-Channel D-Pre Mixer. Craft your signature sound with confidence, and elevate your music to new heights of excellence.
At Riffs & Licks Music, we think the Yamaha MG06 6-Channel D-Pre Mixer is a feature-packed small-format mixer at an affordable price.
Specifications
I/O | Phantom Power: +48V |
Input Channels | Mono[MIC/LINE]: 2 Mono/Stereo[MIC/LINE]: N/A Stereo[LINE]: 2 |
Output Channels | Stereo Out: 2 Monitor Out: N/A Phones: 1 Aux Send: N/A Group Out: N/A |
Bus | Stereo: 1 Group: N/A Aux: N/A |
Input Channel Function | Pad: 26dB (Mono) HPF: 80Hz, 12dB/oct (Mono) Comp: N/A EQ High: (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ Mid: N/A EQ Low: (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Peak LED: LED turns on when post EQ signal reaches 3 dB below clipping Level Meter: 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] |
Power Requirements | PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha |
Power Consumption | 12W |
Dimensions (W x H x D; mm) | 149 x 62 x 202 |
Net Weight | 0.9kg |
Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications Optional Accessory: Mic Stand Adaptor BMS-10A |
(MG06AU)
SKU | MG06AU |
Model # | MG06//AU |
Barcode # | 4957812542852 |
Brand | Yamaha |
Shipping weight | 1.6000kg |
Shipping width | 0.242m |
Shipping height | 0.119m |
Shipping length | 0.270m |
Shipping cubic | 0.007775460m3 |
