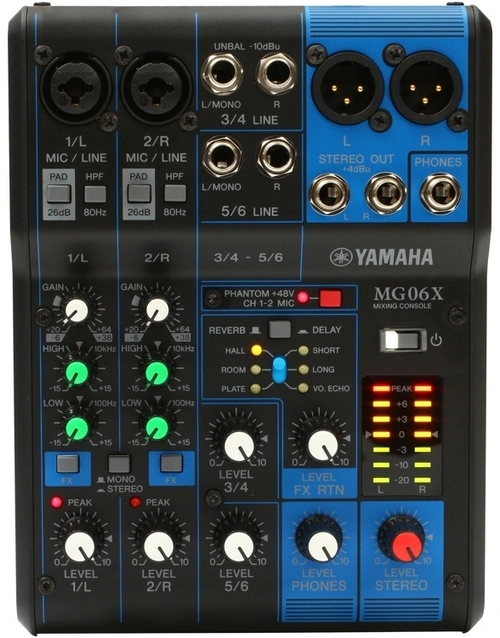

Yamaha MG06X 6-Channel D-Pre Mixer with Effects
Yamaha MG06X 6-Channel D-Pre Mixer with Effects
The Yamaha MG06X 6-Channel D-Pre Mixer with Effects embodies Yamaha's commitment to delivering pristine audio quality while adding an array of high-grade SPX effects for an immersive sound crafting experience.
At the heart of the MG06X Mixer are the renowned D-Pre (Discrete Class-A Mic Preamps), setting the stage for exceptional audio engineering. With an inverted Darlington circuit, these studio-grade preamps deliver fat, natural bass and smooth, soaring highs with minimal distortion. The impressive frequency range ensures faithful reproduction of your audio source, saving time and effort on excessive EQing and effects processing.
Taking sound excellence further, the MG06X features custom-made MG01 op-amps that prioritize sound quality over all else. Developed in collaboration with semiconductor manufacturers, these op-amps undergo meticulous redesign, optimizing internal components and wiring with high-quality materials like silicon wafers and copper wire to achieve superb resolution.
With switchable phantom power and a PAD switch, the MG06X Mixer accommodates condenser microphones with extended frequency response and high sound quality. The PAD switch attenuates high input signals common in mic'ed instruments during performances, preventing clipping and preserving the mix's integrity. Enhance your sound with six high-grade SPX effects (REVERB HALL / ROOM / PLATE, DELAY SHORT / LONG / VO.ECHO), elevating your creativity to new heights. Craft immersive soundscapes and add depth to your mix with ease, all at your fingertips.
Built to withstand the rigors of professional use, the MG06X Mixer features a rugged, impact-resistant metal chassis with optimal convection cooling. The separation of the power supply from the analogue circuitry ensures superior noise reduction and prolongs component life, making it a reliable companion for years to come. The locking XLR connectors on the main stereo outputs ensure stable signal transmission, even in demanding environments, further reinforcing the mixer's reliability during critical performances.
At Riffs & Licks Music, we think the Yamaha MG06X 6-Channel D-Pre Mixer with Effects is a feature-packed small-format mixer with effects at an affordable price.
Specifications
| Mixing Capability | On-Board Processors: SPX algorithm: 6 programs |
| I/O | Phantom Power: +48V |
| Input Channels | Mono[MIC/LINE]: 2 Mono/Stereo[MIC/LINE]: N/A Stereo[LINE]: 2 |
| Output Channels | Stereo Out: 2 Monitor Out: N/A Phones: 1 Aux Send: N/A Group Out: N/A |
| Bus | Stereo: 1 Group: N/A Aux: N/A |
| Input Channel Function | Pad: 26dB (Mono) HPF: 80Hz, 12dB/oct (Mono) Comp: N/A EQ High: (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ Mid: N/A EQ Low: (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Peak LED: LED turns on when post EQ signal reaches 3 dB below clipping Level Meter: 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] |
| Power Requirements | PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha |
| Power Consumption | 12W |
| Dimensions (W x H x D; mm) | 149 x 62 x 202 |
| Net Weight | 0.9kg |
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications Optional Accessory: Mic Stand Adaptor BMS-10A |
(MG06XAU)
| SKU | MG06XAU |
| Model # | MG06X//AU |
| Barcode # | 4957812542845 |
| Brand | Yamaha |
| Shipping weight | 1.6000kg |
| Shipping width | 0.242m |
| Shipping height | 0.119m |
| Shipping length | 0.270m |
| Shipping cubic | 0.007775460m3 |
