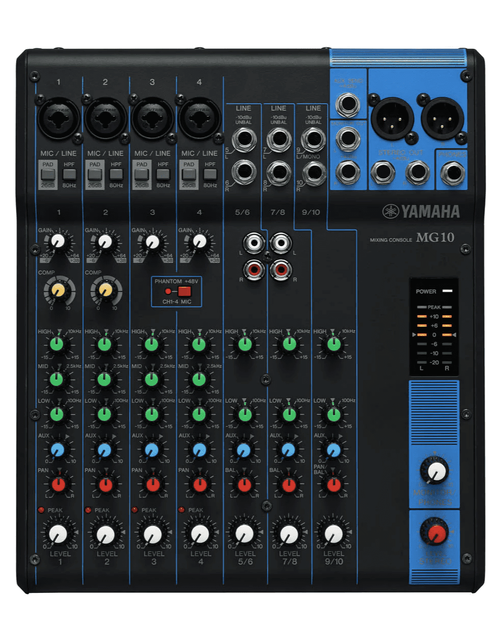

Yamaha MG10 10-Channel D-Pre Mixer
Yamaha MG10 10-Channel D-Pre Mixer
From studio-grade D-Pre mic preamps to 1-knob compressors and versatile EQ, the Yamaha MG10 10-Channel D-Pre Mixer empowers musicians and sound engineers to craft professional-level audio with ease.
The D-Pre (Discrete Class-A Mic Preamps) form the foundation of sonic excellence, delivering fat, natural bass and smooth highs with low distortion. Designed with an inverted Darlington circuit, these preamps ensure a wide frequency range and transparent sound for every audio source, eliminating the need for excessive EQing and effects processing. One-knob compressors, an original Yamaha innovation, grant instant access to optimized compression settings, providing livelier guitars, punchier bass lines, and cleaner vocal sounds without the complexity of traditional compression units.
The MG10 Mixer features 3-band equalizers on all mono channels, giving you precise control over your sound. High-pass filters allow you to remove unwanted low-frequency noise, ensuring a cleaner mix. With AUX sends and effects, expand your sound reinforcement or recording setup effortlessly. Incorporate additional effects, output to external recording devices, or feed monitoring systems for enhanced performance versatility.

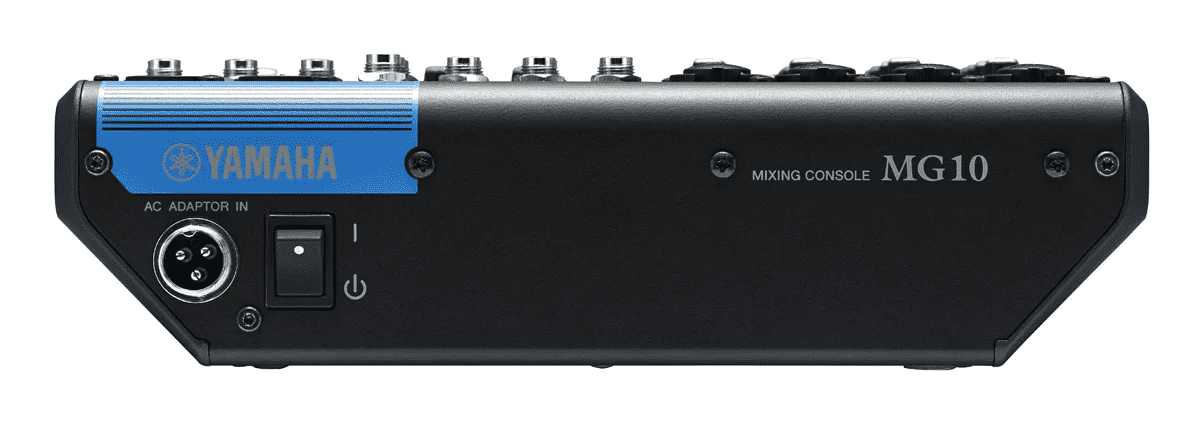

Built to withstand demanding environments, the MG10 Mixer boasts a rugged, powder-coated metal chassis that ensures unrivalled durability. The internal layout separates the power supply from the analogue circuitry, reducing noise and extending component life. Locking XLR connectors on the main stereo outputs guarantee stable signal transmission, even during the most intense performances.
At Riffs & Licks Music, we think the Yamaha MG10 Mixer is a feature-packed small-format mixer at an affordable price.
Specifications
| I/O | Phantom Power: +48V |
| Input Channels | Mono[MIC/LINE]: 4 Mono/Stereo[MIC/LINE]: N/A Stereo[LINE]: 3 |
| Output Channels | Stereo Out: 2 Monitor Out: 1 Phones: 1 Aux Send: 1 Group Out: N/A |
| Bus | Stereo: 1 Group: N/A Aux: 1 |
| Input Channel Function | Pad: 26dB (Mono) HPF: 80Hz, 12dB/oct (Mono) Comp: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec EQ High: (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ Mid: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking EQ Low: (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Peak LED: LED turns on when post EQ signal reaches 3 dB below clipping Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| Power Requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power Consumption | 22.9W |
| Dimensions (W x H x D; mm) | 244 x 71 x 294 |
| Net Weight | 1.9kg |
| Accessories | Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications Optional Accessory: Mic Stand Adaptor BMS-10A |
(MG10AU)
| SKU | MG10AU |
| Model # | MG10//AU |
| Barcode # | 4957812548014 |
| Brand | Yamaha |
| Shipping weight | 3.5000kg |
| Shipping width | 0.360m |
| Shipping height | 0.132m |
| Shipping length | 0.400m |
| Shipping cubic | 0.019008000m3 |
