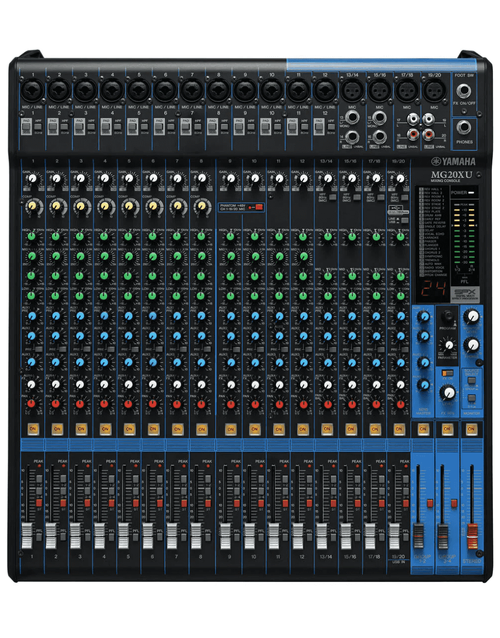

Yamaha MG20XU 20-Channel D-Pre Mixer with Effects & USB Audio
Embracing a philosophy of transparent sound, Yamaha delivers unparalleled sonic purity and top-notch sound quality with the Yamaha MG20XU 20-Channel D-Pre Mixer with Effects & USB Audio.
The heart of the MG20XU lies in its D-Pre (Discrete Class-A Mic Preamps), setting the foundation for exceptional audio performance. The studio-grade preamps employ an inverted Darlington circuit, offering powerful, low-distortion sound with a wide frequency range. Capture natural bass and soaring highs without the need for excessive EQing or additional effects processing. Take advantage of the high-quality Op-Amp technology, custom-made MG01 op-amps, prioritizing sound quality above all else. Redesigned circuitry, optimized internal components, and high-quality materials ensure superb resolution and unmatched clarity in your mixes.
The Switchable Phantom Power & PAD Switch, allows you to fully utilize condenser microphones while avoiding clipping issues during intense performances. With built-in SPX Digital Effects, elevate your mix with 24 editable effects, including top-notch reverb and delay, adding depth and ambiance to your sound. Connect an optional FC5 foot switch for convenient on/off control. The MG20XU also functions as a 24-bit/192kHz 2-in/2-out USB Audio Interface, making recording and playback a breeze. Seamlessly connect to your PC or iPhone/iPad via USB or Apple's Camera Connection Kit, facilitating high-resolution content playback. Enhance your creative process with the bundled Cubase AI DAW software and Cubasis LE app for iPad, providing a powerful and streamlined platform for music production.
Built to endure the demands of professional use, the MG20XU features a rugged, powder-coated metal chassis, ensuring durability and reliability. Its smart internal layout separates the power supply from the analogue circuitry, reducing noise and extending component life.
At Riffs & Licks Music, we think that whether you're a live sound engineer, studio producer, or musician seeking to refine your sound, the Yamaha MG20XU 20-Channel D-Pre Mixer with Effects & USB Audio is an excellent choice, thanks to its outstanding features, professional sound quality, and rugged build.
Specifications
| Mixing Capability | On-Board Processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| I/O | Phantom Power: +48V Digital I/O: USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
| Input Channels | Mono[MIC/LINE]: 12 Mono/Stereo[MIC/LINE]: 4 Stereo[LINE]: N/A |

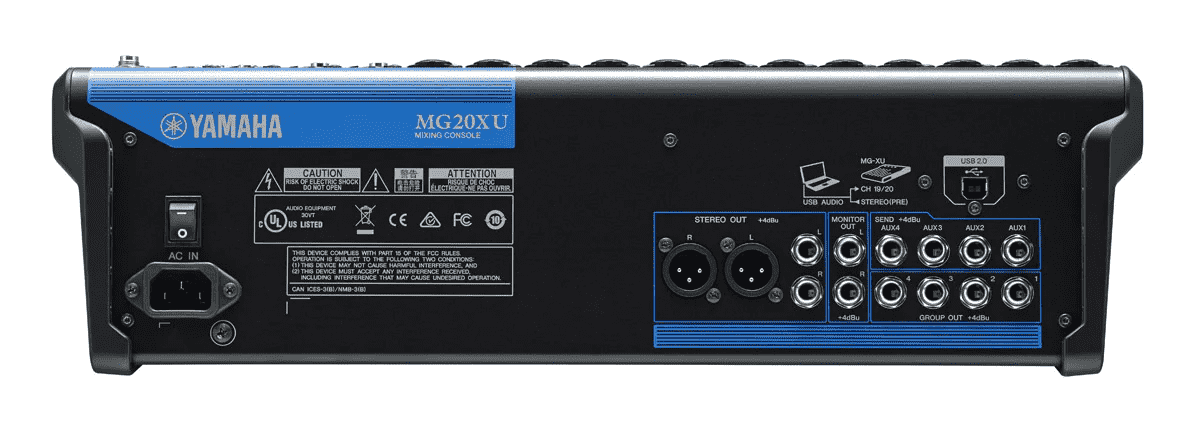

| Output Channels | Stereo Out: 2 Monitor Out: 1 Phones: 1 Aux Send: 4 Group Out: 4 |
| Bus | Stereo: 1 Group: 4 Aux: 4 |
| Input Channel Function | Pad: 26dB (Mono) HPF: 80Hz, 12dB/oct (Mono) Comp: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec EQ High: (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ Mid: N/A EQ Low: (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Peak LED: LED turns on when post EQ signal reaches 3 dB below clipping Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
| Power Requirements | AC 100 – 240 V, 50 / 60 Hz |
| Power Consumption | 36W |
| Dimensions (W x H x D; mm) | 444 x 130 x 500 |
| Net Weight | 7.1kg |
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 |
(MG20XUAU)
| SKU | MG20XUAU |
| Model # | MG20XU//AU |
| Barcode # | 4957812557481 |
| Brand | Yamaha |
| Shipping weight | 10.0000kg |
| Shipping width | 0.523m |
| Shipping height | 0.213m |
| Shipping length | 0.559m |
| Shipping cubic | 0.062272041m3 |
