Yamaha Stagepas 100 Portable PA System
The Yamaha Stagepas 100 Portable PA System strikes the perfect balance between top-notch sound quality and ultimate portability, allowing you to transform any venue into an intimate live stage. With its lightweight yet robust design, effortless operation, and pro quality sound, the Stagepas 100 empowers you to captivate your audience with the full expression of your musical prowess.
Compact by design, mighty in sound, the Stagepas 100 is not just an ordinary speaker that amplifies your inputs. It harnesses cutting-edge technology found in Yamaha's high-end professional products, ensuring impressive sonic performance. The powerful coaxial compression driver, paired with Yamaha's FIR-X filters for the HF and LF crossover, delivers exceptional sound pressure, precise phase response, and natural dispersion, ensuring that every nuance of your performance is conveyed with crystal-clear clarity.
Setting up and starting your show has never been easier. Within seconds, the Stagepas 100 will have you sounding great and ready to perform. Simply power it on, connect your microphone and instrument, adjust the volume, and you're good to go. The front panel master EQ allows you to effortlessly dial in your sound or make on-the-fly adjustments.
Carrying a PA system has never been this convenient. Weighing just 5 kg, the Stagepas 100 packs all the essentials of a compact PA into a durable cabinet that you can carry in one hand. With its exceptional portability, you can set up and play anywhere, anytime, turning any location into your personal live stage. Enjoy even more convenience with multipoint Bluetooth connectivity. The Stagepas 100 supports wireless connection for music and audio playback using smartphones and tablets, adding a new level of versatility to your setup.

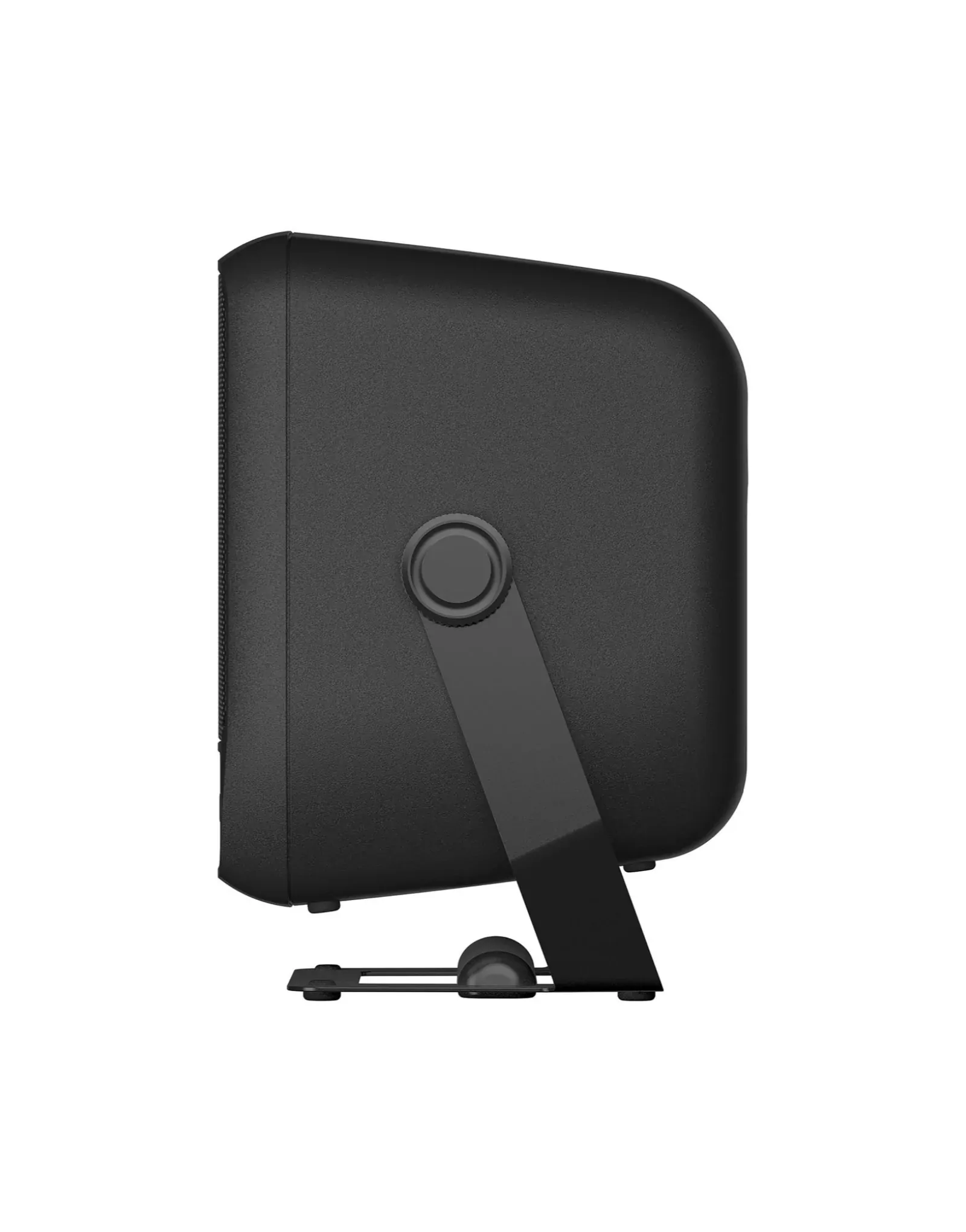

Take control of your coverage area with the carrying handle that doubles as a stand. Adjust the attachment screws to direct your sound precisely where it needs to go. For additional sound dispersion options, the handle also features a 3/8" diameter screw hole, allowing you to mount the Stagepas 100 on a microphone stand.
At Riffs & Licks Music, we think the Yamaha Stagepas 100 Portable PA System is a game-changer. Its unparalleled portability, exceptional sound quality, and effortless operation make it a must-have for musicians on the go.
Please Note: Pictured microphone stand is for illustrative purposes only and is not included.
Features
100 W Class-D amplifier |
1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover |
3-channel mixer (2 monaural mic/line + 1 line) |
Equipped with a 2-band master EQ |
Compatible with Hi-Z input (Channel 2 only) |
Equipped with mix-out |
Carrying handle doubles as an adjustable stand |
Compatible with audio accompaniment over Bluetooth |
Optional carrying bag (BAG-STP100; sold separately) available for convenient transport |
Specifications
Type | 2-way Bi-amp Powered Speaker with mixer |

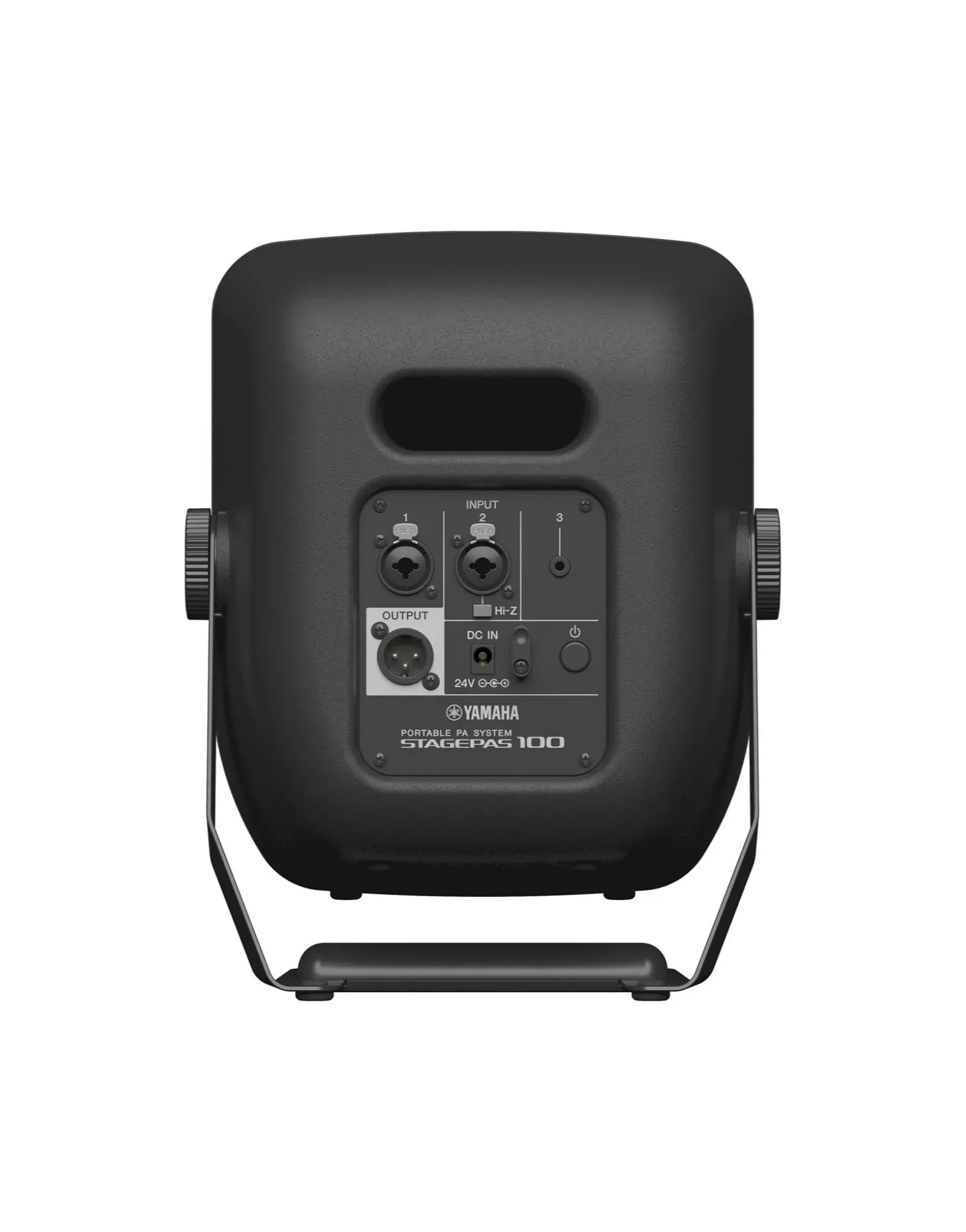

Inputs | INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line) |
Outputs | OUTPUT: XLR3-32 (INPUT 1-3 mix) |
Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 |
Mixing Capability | Mixing Channels: 3 Input Channel Functions: Hi-Z (Channel 2 Only) Output Channel Functions (2-Band EQ) |
Speaker Type | Coaxial speaker with compression driver |
Frequency Range (-10dB) | 70 Hz – 20 kHz |
Coverage Area | H90゚ x V90゚ |
Crossover | 1.8 kHz (FIR-X) |
Maximum Output Level (1m, on axis) | 120 dB SPL *1 |
Components | LF:6.5" Cone, 1.7" voice coil HF:1" throat compression driver, 1.4" voice coil |
Amplifier Class | Class-D |
Power Rating (Dynamic) | 100 W (LF: 93 W, HF: 7 W) |
Cooling | Natural convection (no fan) |
Power Consumption | 10 W (Idle), 30 W (1/8 power) |
Power Requirements | 100-240 V 50/60 Hz |
Dimensions (W x H x D; mm) | 239 x 310 x 215 |
Weight | 5.2 kg |
Accessories (Included) | Power cord x 1, AC adaptor (PA-500) x 1 |
Optional Extras (Sold Separately) | Carrying bag: BAG-STP100 |
(STAGEPAS100)
SKU | STAGEPAS100 |
Model # | STAGEPAS100 |
Brand | Yamaha |
Shipping weight | 6.5000kg |
Shipping width | 0.250m |
Shipping height | 0.250m |
Shipping length | 0.350m |
Shipping cubic | 0.021875000m3 |
